Acal BFi: Digital, 3-axis Accelerometer

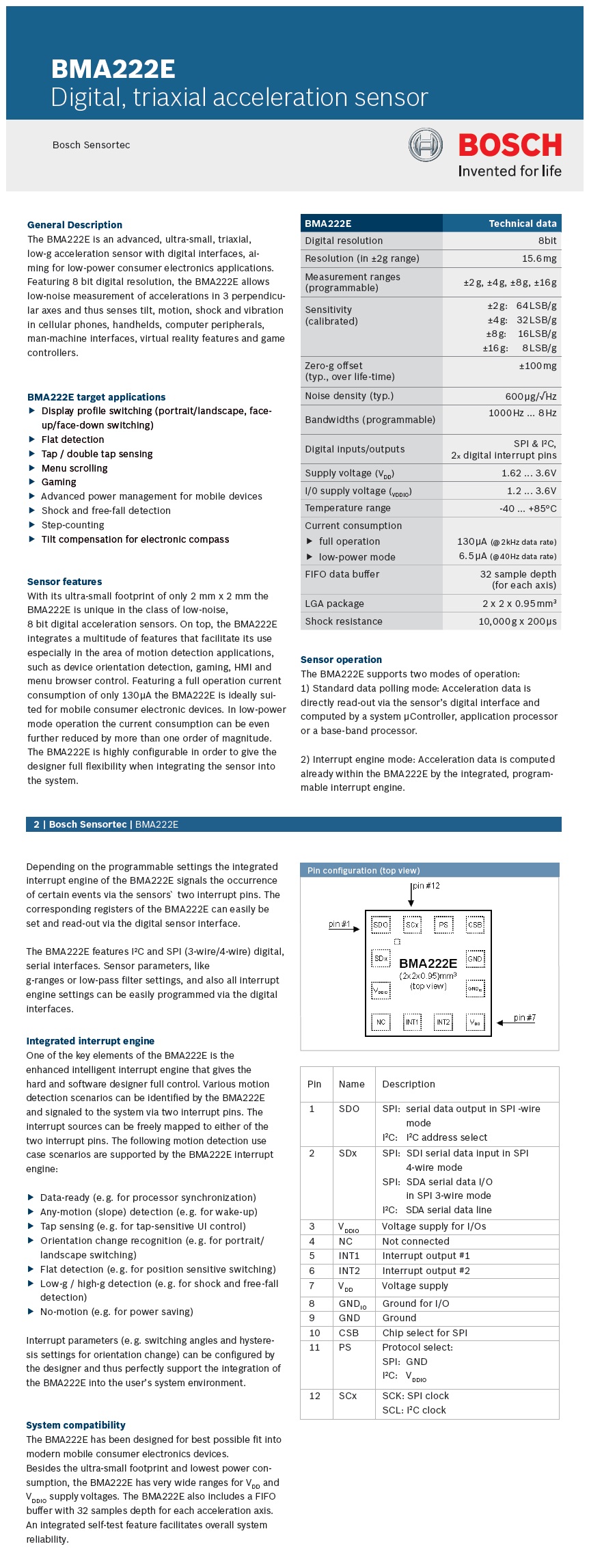

The BMA222E is an advanced, ultra-small, tri-axial, low-g acceleration sensor with digital interfaces, aiming for low-power consumer electronics applications. Featuring 8 bit digital resolution, the BMA222E allows low-noise measurement of accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in cellular phones, handhelds, computer peripherals, man-machine interfaces, virtual reality features and game controllers.
Features
Ultra-small package
Digital interface
Programmable functionality
On-chip FIFO
On-chip interrupt controller
Ultra-low power
Temperature sensor
RoHS compliant, halogen-free
Specifications
Number of Axes: 3
Measurement Range (g): ±2, ±4, ±8, ±16
Scale Factor/Sensitivity (LSB/g): 64, 32, 16, 8
Bandwidth (Hz): 8 to 1000
Noise (μg/√Hz): 600
Package: LGA-12
Operating Temperature Range (°C): -40 to 85
