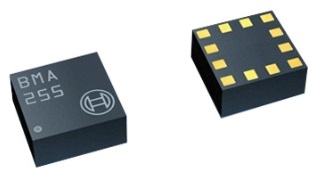

Acal BFi: Digital, 3-axis Accelerometer (BMA255)
Acal BFi: Digital, 3-axis Accelerometer (BMA255)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: BMA255
.

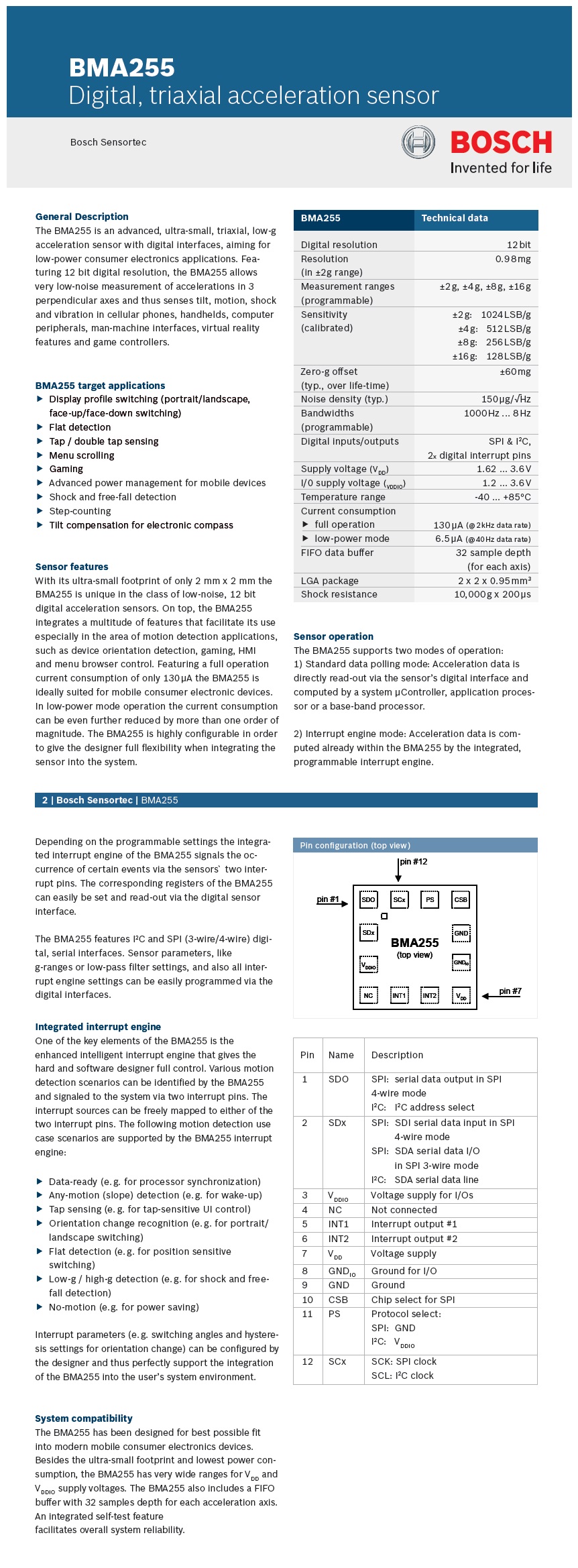

Description Specifications and Drawings


Acal BFi: Digital, 3-axis Accelerometer

The BMA255 is an advanced, ultra-small, tri-axial, low-g acceleration sensor with digital interfaces, aiming for low-power consumer electronics applications. Featuring 12 bit digital resolution, the BMA255 allows very low-noise measurement of accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in cellular phones, handhelds, computer peripherals, man-machine interfaces, virtual reality features and game controllers.

Features

  • Ultra-small package

  • Digital interface

  • Programmable functionality

  • On-chip FIFO

  • On-chip interrupt controller

  • Ultra-low power

  • Temperature sensor

  • RoHS compliant, halogen-free

Specifications

  • Number of Axes: 3

  • Measurement Range (g): ±2, ±4, ±8, ±16

  • Scale Factor/Sensitivity (LSB/g): 1024, 512, 256, 128

  • Bandwidth (Hz): 8 to 1000

  • Noise (μg/√Hz): 150

  • Package: LGA-12

  • Operating Temperature Range (°C): -40 to 85
