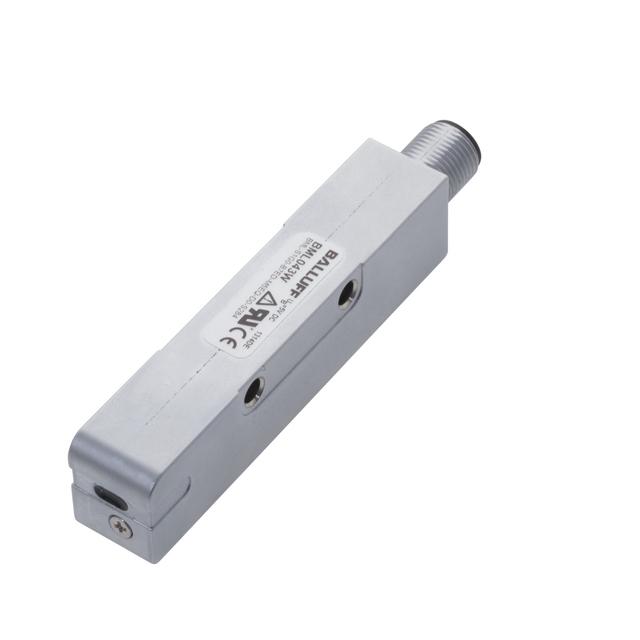

Balluff: Magnetic Linear Encoder (BML-S1G Series)

Absolute linear magnetically coded position measurement systems. High-precision for fast applications.

The BML absolute position measurement systems from Balluff transfers the current position immediately and without a reference run. Even following a loss of supply voltage and restarting the system.

The BML absolute position measuring systems ensure dynamic and precise positioning for electronic assembly.

Applications

  • Linear motors and drives

  • Laser cutting machines

  • Plasma cutting machines

  • Water jet cutting machines

  • Wood processing

  • Pressure systems

  • Rotary indexing tables

  • Ultrasonic sensors

  • Transfer lines

  • Delivery systems

  • Tool machines and much more

Benefits

  • Measure values quickly and precisely, with high repetition accuracy: For the best machine capacity

  • Long-term-stable magnetic tape with Permagnet® technology: For high installation availability

  • Stable metal housing: Long service life and low overall installation costs

  • Simple, fast installation using the BML configuration software

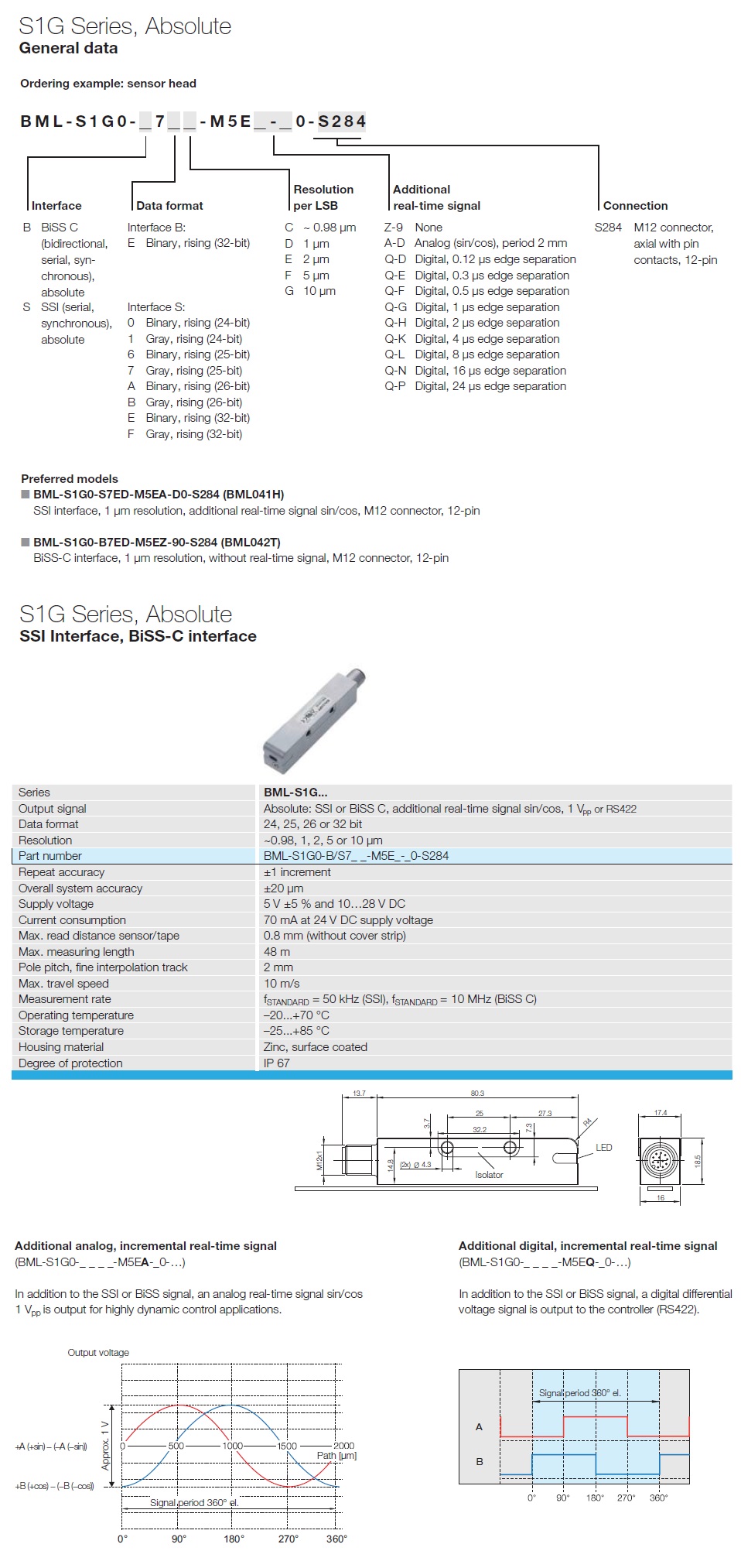

BML-S1G

  • High resolution up to 1 µm, system accuracy 20 µm

  • Measuring length up to 48 m

  • Output signal: SSI/BiSS-C, option of sine-shaped analogue signal or rectangular digital signal

BML-S1G0-B7ED-M5EA-D0-S (BML04PE), BML-S1G0-B7ED-M5EQ-D0-S284 (BML043W), BML-S1G0-B7ED-M5EQ-E0-S284 (BML05U6), BML-S1G0-B7ED-M5EQ-EO-S284 (BML04PM), BML-S1G0-B7ED-M5EZ-90-S284 (BML042T), BML-S1G0-S70D-M5EZ-90-S284 (BML04W3), BML-S1G0-S70F-M5EQ-G0-S284 (BML056R), BML-S1G0-S70G-M5EA-D0-S284 (BML0507), BML-S1G0-S70G-M5EZ-90-S284 (BML04PA), BML-S1G0-S71F-M5EZ-90-S284 (BML04Y8), BML-S1G0-S71G-M5EA-D0-S284 (BML05W6), BML-S1G0-S76D-M5EA-D0-S284 (BML04T4), BML-S1G0-S76D-M5EZ-90-S284 (BML04PH), BML-S1G0-S76F-M5EA-D0-S284 (BML057A), BML-S1G0-S76G-M5EZ-90-S284 (BML0515), BML-S1G0-S77D-M5EA-D0-S284 (BML04PK), BML-S1G0-S77D-M5EZ-90-S284 (BML053P), BML-S1G0-S77F-M5EA-D0-S284 (BML04ZR), BML-S1G0-S77F-M5EQ-D0-S284 (BML057M), BML-S1G0-S77G-M5EA-D0-S284 (BML0539), BML-S1G0-S77G-M5EZ-90-S284 (BML056P), BML-S1G0-S7AD-M5EA-D0-S284 (BML04NR), BML-S1G0-S7AD-M5EQ-D0-S284 (BML04T2), BML-S1G0-S7AD-M5EZ-90-S284 (BML04ZP), BML-S1G0-S7AE-M5EA-D0-S284 (BML0588), BML-S1G0-S7BF-M5EZ-90-S284 (BML05NH), BML-S1G0-S7EC-M5EA-D0-S284 (BML04PF), BML-S1G0-S7ED-M5EA-D0-S284 (BML041H), BML-S1G0-S7ED-M5EA-D0-SA15-S284 (BML0412), BML-S1G0-S7ED-M5EQ-E0-S284 (BML04YJ), BML-S1G0-S7ED-M5EQ-L0-S284 (BML05MC), BML-S1G0-S7ED-M5EZ-90-S284 (BML04PC), BML-S1G0-S7FD-M5EA-D0-S284 (BML05CU), BML-S1G0-S7FD-M5EZ-90-S284 (BML05YY)
