Balluff: Magnetic Linear Encoder (BML-S2B/BML-S2E Series)
Incremental linear magnetically coded position measurement systems. Precise and flexible - wide range of applications.
The BML incremental position measurement systems from Balluff can be used flexibly and are available as a cost-effective option for almost any measurement length. Thanks to standardized digital and analog interfaces, they can be integrated into almost any control system.
In power generation, the food and beverage industry and many other sectors, BML incremental position measuring systems ensure precise positioning.
Applications
Linear motors and drives
Laser cutting machines
Plasma cutting machines
Water jet cutting machines
Wood processing
Pressure systems
Ultrasonic sensors
Transfer lines
Delivery systems
Escalators
Lifts
Conveyor belts and much more
Benefits
Measure values quickly and precisely, with high repetition accuracy: For the best machine capacity
Long-term-stable magnetic tape with Permagnet® technology: For high installation availability
Fully enclosed in metal or in plastic housing: Optimal protection of the electronics for a long service life and lower overall costs

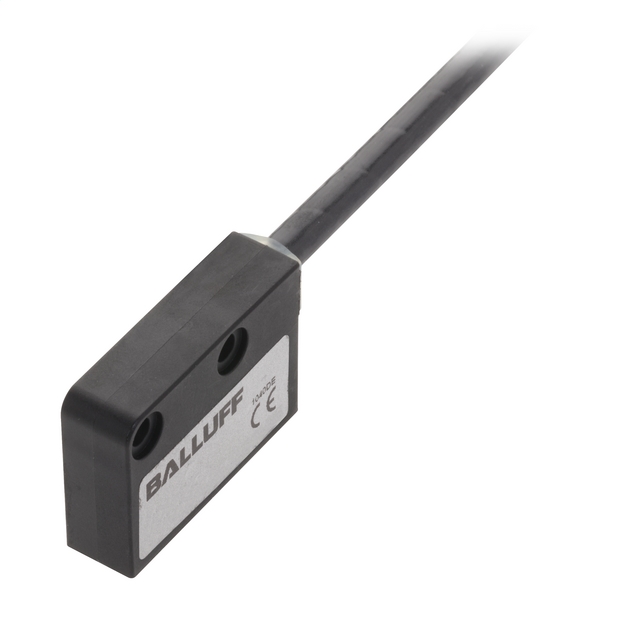

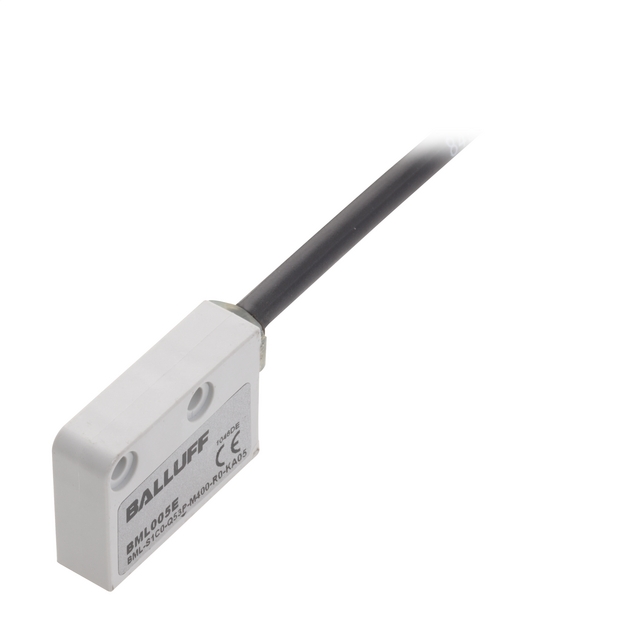

BML-S2B/BML-S2E
High resolution up to 5 µm, system accuracy up to 50 µm
Measuring length up to 48 m
Output signal: Rectangular digital signal
Optionally available with reference signal and end switch
Model No.: BML-S2B0-Q51K-M400-P0-KA01,5-S86A (BML02R3), BML-S2B0-Q53F-M400-D0-KF00,15-ZA0U (BML04CM), BML-S2B0-Q53F-M410-D0-KA05 (BML0211), BML-S2B0-Q53G-M410-H0-KA10 (BML05AH), BML-S2B0-Q53G-M410-P0-KA10 (BML002W), BML-S2B0-Q53G-M413-P0-KA10 (BML002Y), BML-S2B0-Q61F-M420-E0-KA01-S86A (BML04KM), BML-S2B0-Q61F-M420-K0-KA01-S86A (BML0432), BML-S2E0-Q53F-M423-P0-SA12-KF05,3-ZA0P (BML03LA), BML-S2E0-Q53G-M400-L0-SA8-KA02 (BML034F), BML-S2E0-Q53G-M410-P0-SA3-KA04 (BML01HA), BML-S2E0-Q53G-M420-L0-SA3-KA04 (BML04KL)
