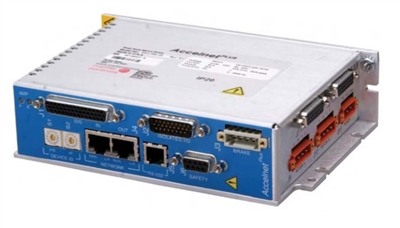

Copley Controls: Accelnet Plus Panel, 2-Axis (BP2 Series)
14-90V VDC CANopen Drives for Brushless Motors
Description
The BP2 is a high-performance, DC powered drive for position, velocity, and torque control of brushless and brush motors via CANopen. Drive commissioning is fast and simple using CME 2⢠software operating under WindowsŽ and communicating with the BP2 via RS-232.
The BP2 operates as a CANopen DS-402 node. Supported modes include: Profile Position-Velocity-Torque, Interpolated Position mode (PVT), and Homing.
Feedback from both incremental and absolute encoders is supported. A multi-mode encoder port functions as an input or output depending on the driveâs basic setup. As an input, it takes feedback from a secondary encoder to create a dual-loop position control system or as a master encoder for driving a cam table. As an output, it buffers the digital encoder signals from the motorâs digital encoder and eliminates split cables that would be needed to send the signals to both drive and control system. There are ten non-isolated inputs. eight opto-isolated digital inputs are bipolar types that source or sink current into a common connection that can be tied to ground or +24V. [IN1&10] default to the drive enable function for axes A & B, and are programmable to other functions. The other inputs are programmable. all inputs have programmable active levels. five opto-isolated outputs [OUT1~5] have individual collector/emitter connections. Two MOSFET outputs [OUT6~7] are programmable to drive motor brakes or other functions.
Drive power is transformer-isolated DC from regulated or unregulated power supplies. an AuxHV input is provided for âkeep-aliveâ operation permitting the drive power stage to be completely powered down without losing position information, or communications with the control system.
Control Modes
Profile Position-Velocity-Torque, Interpolated Position, Homing
Camming, Gearing
Indexer
Command Interface
CANopen
ASCII and discrete I/O
Stepper commands
Âą10V position/velocity/torque
PWM velocity/torque command
Master encoder (Gearing/Camming)
Communications
CANopen DS-402
RS-232
Feedback
Incremental Encoders
Digital quad A/B, Analog Sin/Cos, Panasonic Incremental A Format
Aux. quad A/B encoder / encoder out
Absolute Encoders
SSI, EnDat, Absolute A, Tamagawa & Panasonic Absolute A, Sanyo Denki Absolute A, BiSS (B & C)
Other
Digital Halls
I/O Digital
8 High-speed inputs
2 Motor over-temp inputs
8 Opto-Isolated inputs
5 Opto-Isolated outputs
2 Opto-Isolated brake outputs
Analog
2 Reference Inputs, 12-bit
Safe Torque Off (STO)
SIL 3, Category 3, Pl d
Dimensions: in [mm]
6.78 x 4.70 x 1.74 [172.1 x 119.3 x 44.1] no heatsink
6.78 x 4.70 x 3.14 [172.1 x 119.3 x 79.8] with heatsink
Model No.: BP2-090-06, BP2-090-14, BP2-090-20
