Powered By E-MOTION

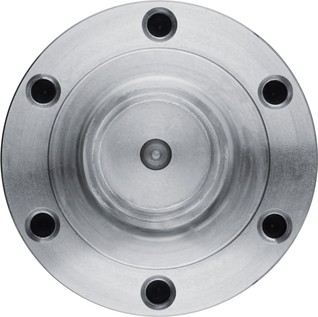

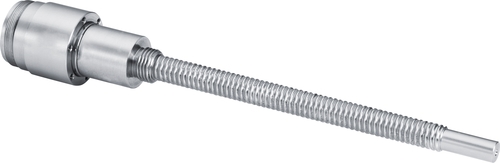

FAULHABER: Ball Screws - Spindle Drives (BS22-1.5 Series)
Thanks to their high-precision mechanical design, FAULHABER ball screws are ideally suited for positioning tasks requiring a high degree of accuracy.
Combinations with DC-Micromotors with high-resolution encoders, integrated Motion Controllers or Stepper Motors represent a superior system solution for the most demanding applications in optical systems, special machine construction, automation or medical technology.

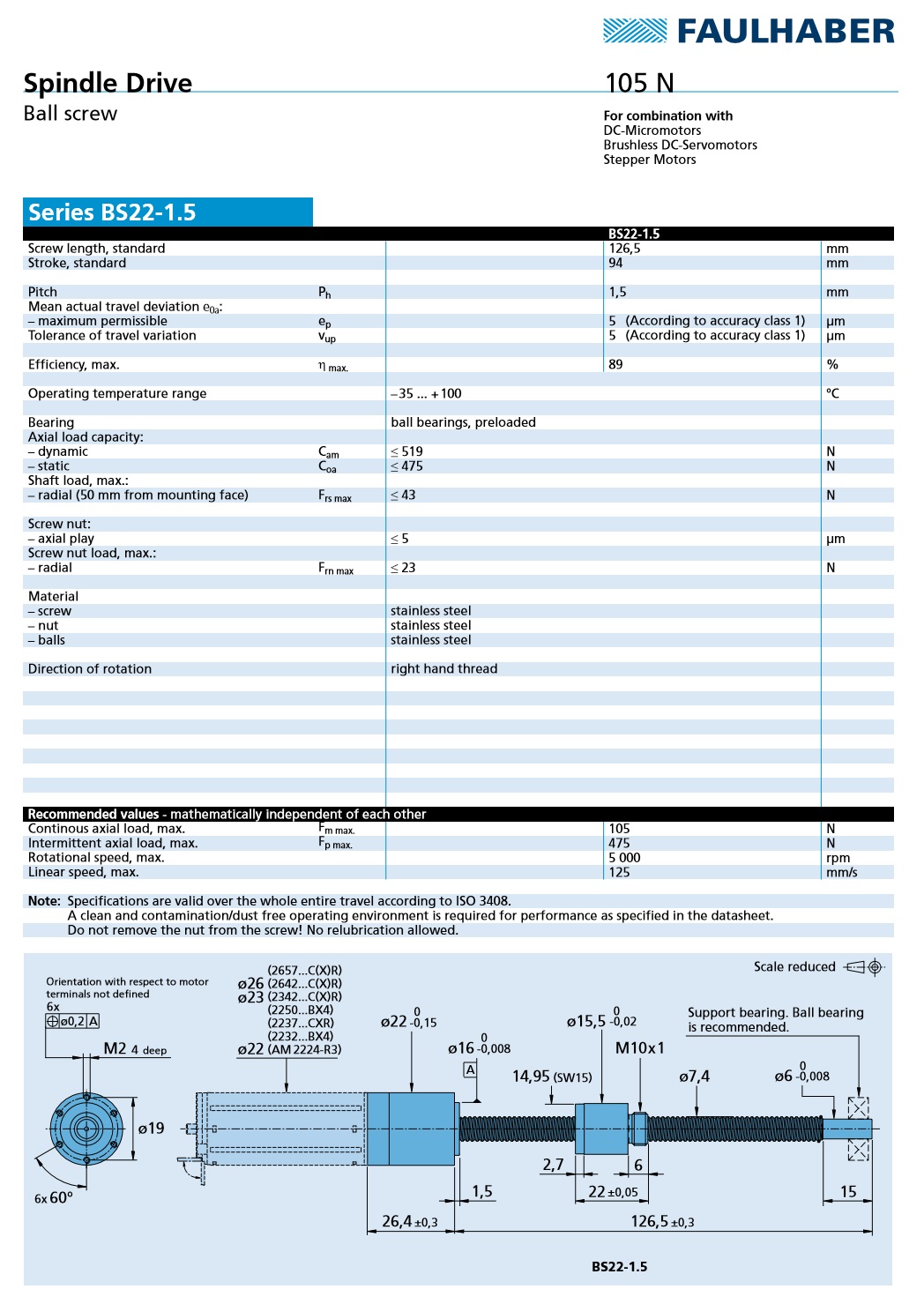

Specifications:
Nominal Diameter (mm): 7.4
Material: Stainless Steel
Continuous Axial Load, max (N): 105
Intermittent Axial Load, max (N): 475
Pitch (mm): 1.5
