FAULHABER: Ball Screws (BS32-2.0 Series)
FAULHABER: Ball Screws (BS32-2.0 Series)

Alternate View


Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: BS32-2.0
.

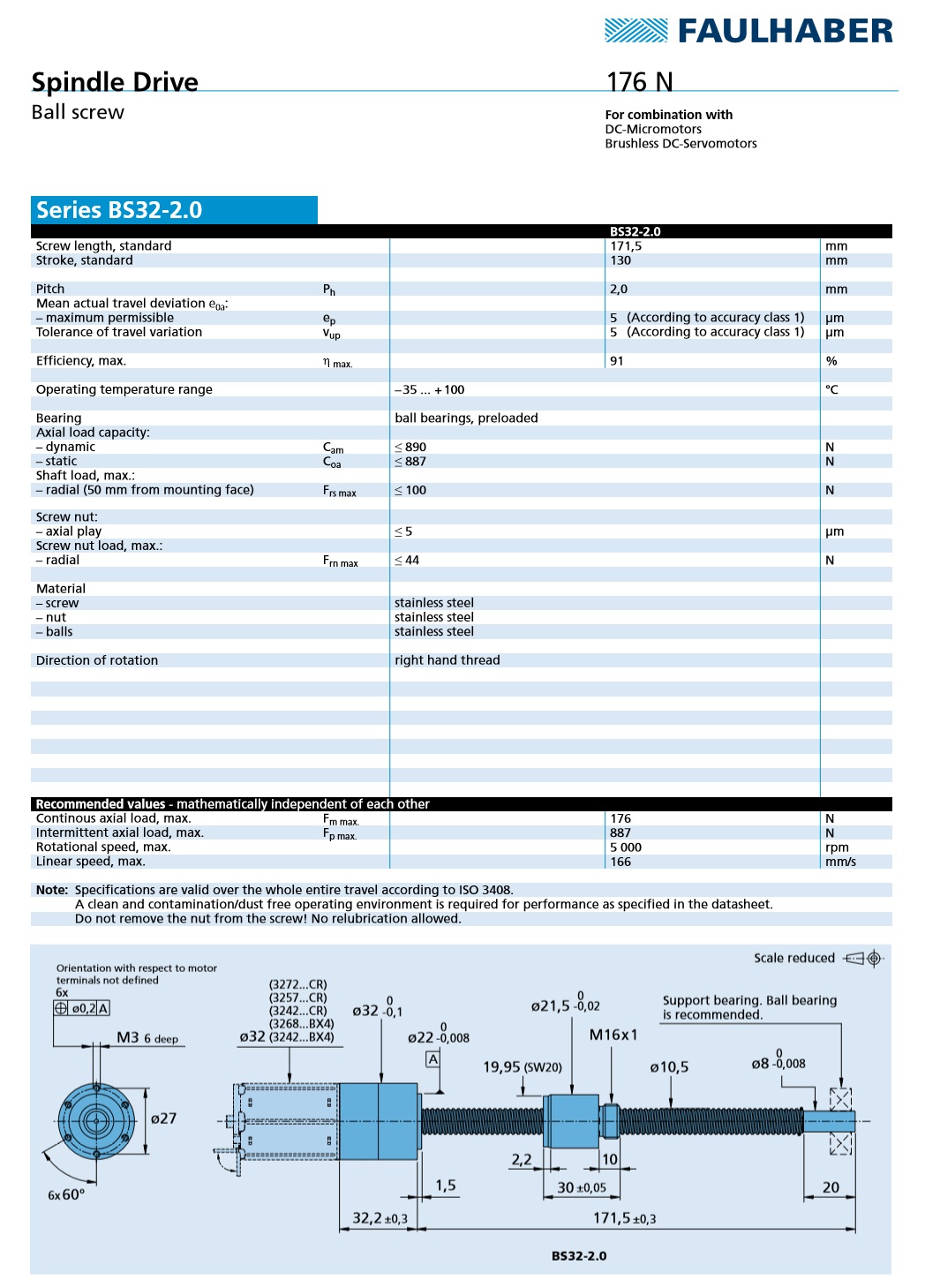

Description Specifications and Drawings

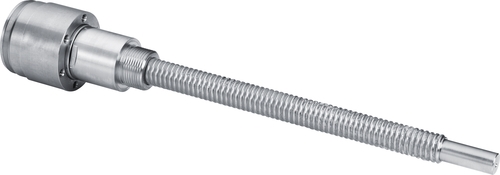

FAULHABER: Ball Screws - Spindle Drives (BS32-2.0 Series)

Thanks to their high-precision mechanical design, FAULHABER ball screws are ideally suited for positioning tasks requiring a high degree of accuracy.

Combinations with DC-Micromotors with high-resolution encoders, integrated Motion Controllers or Stepper Motors represent a superior system solution for the most demanding applications in optical systems, special machine construction, automation or medical technology.

Specifications:

  • Nominal Diameter (mm): 10.5

  • Material: Stainless Steel

  • Continuous Axial Load, max (N): 176

  • Intermittent Axial Load, max (N): 887

  • Pitch (mm): 2
