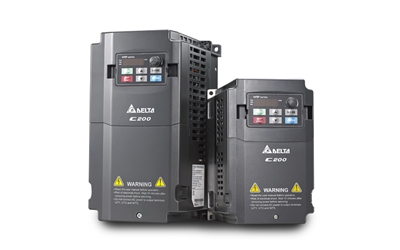

Delta: C200 Series
Delta: C200 Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: C200
.

Description Specifications and Drawings


Delta: AC Motor Drives (C200 Series)

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

C200 Series
The VFD-C200 Series is an intelligent vector control micro drive that provides versatile control modes for motors and includes built-in PLC functions with capacity up to 5,000 steps. It is suitable for harsh environment applications with a strengthened thermal and anti-dust design that provides comprehensive protection.

Specifications:

  • Built-in PLC program with 5,000 steps capacity

  • Built-in brake chopper

  • MODBUS RS-485 and CANopen (Slave)

  • The high-brightness LED keypad shares the same extension cable of the VFD-E/M/B Series to maximize operation distance

  • Supports open loop control of permanent motors (PM Sensorless)

  • Two high speed pulse input terminals MI7 and MI8 built-in with maximum speed up to 33kHz

  • Two high speed pulse output terminals DFM1 and DFM2 built-in with maximum speed up to 33kHz

  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications

  • C200 Series Frame A supports wall mounted installation

Applications:

  • Food packaging machinery

  • conveyors

  • textile machinery

  • woodworking machinery

  • fans

  • pumps
