Panel PC series C33xx

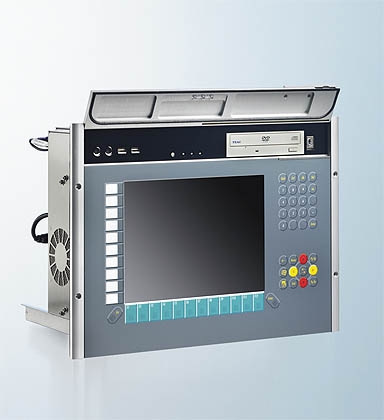

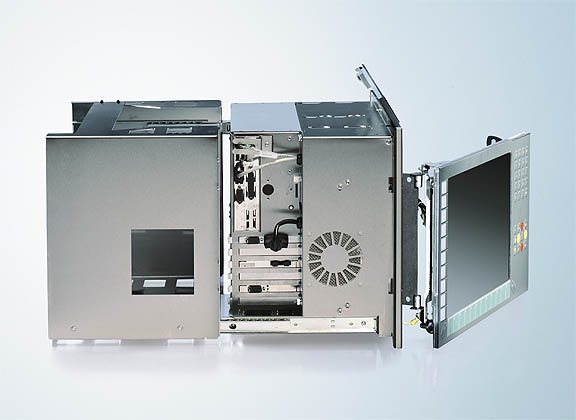

The 19-inch Panel PC series C33xx, fitted with Intel® Celeron®, Intel® Core™2 Duo or Core™ i3/i5/i7 of the 2nd or 3rd generation on a standard ATX motherboard, offers controllers of the highest performance class, with a 12- or 15-inch TFT display, optionally with alphanumeric PC keyboard or numeric keyboard, with a touch screen or a touchpad. The housing can be installed and re-fitted from the front. A CD/DVD-ROM or multi DVD drive can be fitted behind the lockable front cover. It is also possible to fit USB connection sockets for keyboard and mouse under the front cover, permitting commissioning and software updates with the aid of standard input devices. In this case the connected keyboard operates in parallel with the front keyboard. The mouse works in parallel with the touch screen or touch pad. Additionally, a second 3½-inch hard disk can be installed. The on-board RAID 1 controller can mirror two SATA hard disks.

Card holders for the plug-in cards generate insensitivity to shocks and vibrations. The card holders can be fixed and removed without tools.

The Industrial PC corresponds to the ATX standard, and is therefore compatible with all new PC components.

The type plate provides detailed information regarding the PC’s configuration.

The construction of the housing has been designed to allow individual changes, and many features can be optimized for the application.

A variety of front panels can be combined with the computer core. Although the front panels have different heights, the computer core is always made to fit eight rack units. It is possible that the front panel will extend one or two rack units further at the lower side. The fitting cut-out required for installation is always the same.

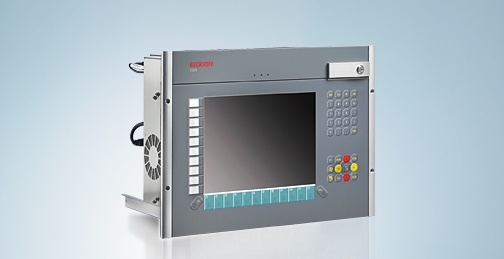

C3320 | 19-inch Panel PC

The 19-inch Panel PC C3320 is designed for installation into 19-inch racks or the front of a control cabinet. It provides the highest performance and openness of ATX standard components. The C3320 is ideally suited for machine construction and plant engineering applications, for example with the TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.

Model No.: C3320-0050, C3320-0060, C3320-0070
