Beckhoff: Industrial PC (C3620 Series)

Panel PC series C36xx

The Panel PC series C36xx, fitted with Intel® Celeron® or Core™ i3/i5/i7 processors of the latest generation on an ATX motherboard, offers controllers of the highest performance class with 12- or 15-inch TFT display, as a display/computer unit optionally with touch screen. The housing is opened from the rear. All components can be reached quickly and easily.

A CD/DVD-ROM for commissioning and software updates or a multi DVD drive for data backup are optionally accessible from the rear side. The drives can be removed without tools once the housing has been opened. Card holders for the plug-in cards generate insensitivity to shocks and vibrations. The card holders can be fixed and removed without tools.

The type plate on the rear provides detailed information regarding the PC’s configuration. Data on the function and type is listed for the fitted plug-in cards. Data about drives indicates not just the manufacturer and type, but also provides information about type of connection and jumpers.

The construction of the housing of the C36xx series accords with the ATX standard, thus ensuring long-term compatibility with any PC components that will appear in the next few years.

Customer-specific design

For the Industrial PC series represented here, customer-specific designs are available that will be created according to individual requirements, for example with an individual logo on the front or a completely different design of the front laminate.

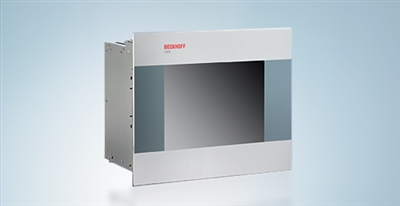

C3620 | Panel PC

The Panel PC C3620 is designed for installation into the front of a control cabinet. It provides the highest performance and openness of ATX standard components. The C3620 is ideally suited for machine construction and plant engineering applications, for example with the TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.

Model No.: C3620-0050, C3620-0060, C3620-0070
