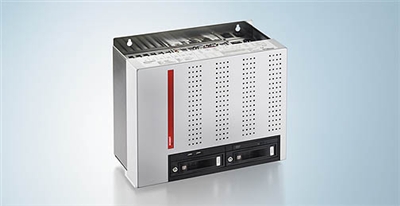

Beckhoff Industrial PC (C6650 Series)
The C6640/C6650 series of Industrial PCs has been designed for control cabinet installation. Industrial PCs from this series and a Beckhoff Control Panel with DVI and USB connection or Ethernet Control Panel as operating unit make an ideal combination and offer a high-performance control platform for machine construction and plant engineering applications – particularly in conjunction with the TwinCAT automation software. The C6640/C6650 is ideally suited as a central processing unit for an EtherCAT control system.
The C6640/C6650 control cabinet PC series includes two devices, both of which are equipped with top-performance components with Intel® Celeron® or Core™ i3/i5/i7 of the latest generation on an ATX motherboard. Three free PCI and four PCI Express slots are available for plug-in cards with a length of up to 210 mm. Graphics and Ethernet adapters are already available on-board, without taking up a slot.
All PC connections face upwards, so that the connecting cable can be taken directly to the wiring channel. The side walls are completely passive, and allow the Industrial PC to be fitted immediately next to other control cabinet devices.
The C6640/C6650 series is designed for optimum space utilization and easy accessibility of all components. The C6640 is the most compact PC with ATX motherboard but nevertheless offers convenient access to drives, memory and plug-in cards.
The C6650 features hard drive removable frames which, together with the on-board RAID controller, form a RAID 1 system with two mirrored hard disks. This ensures high data security. Hard disks which failed can easily be exchanged during operation.
The housing design of the C6640/C6650 series ensures long-term compatibility with new PC components. The motherboard, processor, memory or hard disk are upgradable, while the same housing can be used for years to come.
The device can be equipped with a CD/DVD ROM or multi DVD drive. A choice of a CFast socket or a 2½-inch SSD slot is offered for flash disks. Card holders for the plug-in cards generate insensitivity to impacts and vibrations. The C6640/C6650 series PCs are supplied with 100 to 240 V AC full range or 24 V DC power supply unit.
A type plate is located on the top of the front cover, giving detailed information about the PC configuration.
The housing design offers plenty of scope for adjustment to the respective application.
C6650 | Control cabinet Industrial PC
The Industrial PC C6650 is designed for installation in a control cabinet and fitted with components of the highest performance class meeting the ATX standard. A Beckhoff Control Panel and the C6650 make an ideal combination, representing a powerful platform for machine construction and plant engineering applications, for example with the TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.

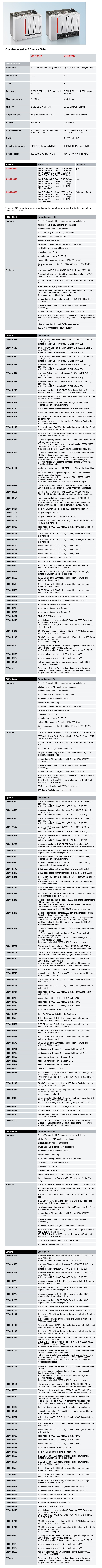

Model No.: C6650-0030, C6650-0040, C6650-0050
