Electric Cylinders - High Speed and Compact Actuators

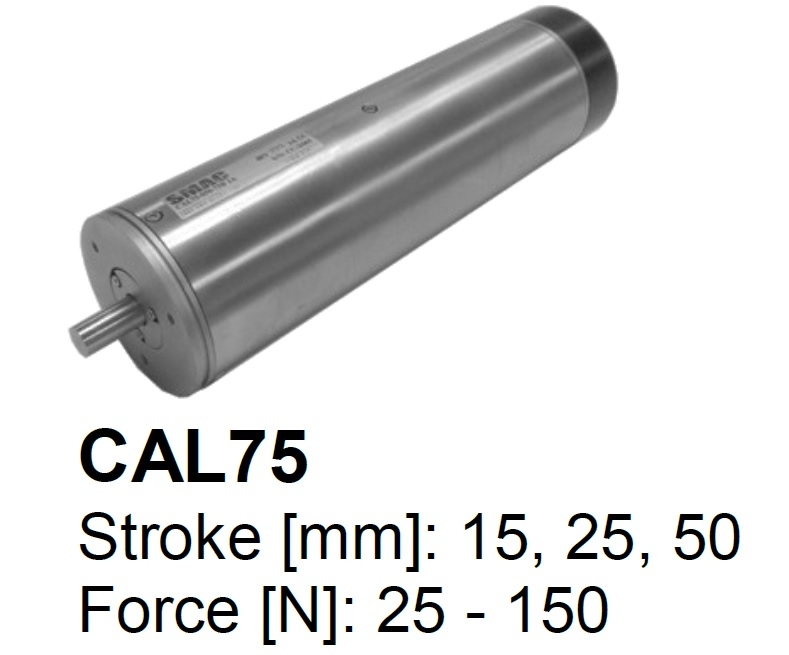

CAL75-015-65
The CA range of electric cylinders have been designed with the most demanding of automation tasks in mind and are the first real linear motors to challenge pneumatic devices. They offer long life and much more precise and repeatable force control and positioning than conventional pneumatic devices. The conventional shape and multiple mounting points allow the electric cylinders to be directly retrofitted in most cases.
Features:
Encoder resolutions:
CAL12 series: 1µm standard. 0.1µm optional.CAL36 and CAL75 series: 5µm standard. 1µm and 0.1µm optional for most units.
Shaft ends:
Male, Female, Blank and Custom
Return spring:
Prevents the shaft from dropping during vertical operation when power is cut.
Vacuum:
For pick and place applications.
Connector:
Straight (standard) or 90 degrees (Side connector).
Mount:
Face mount (standard) or base mount.
