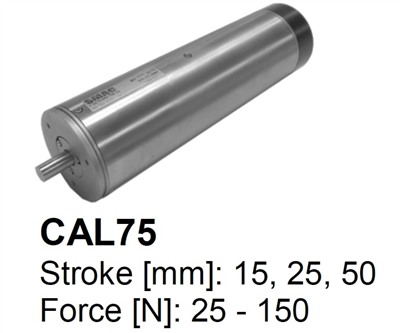

SMAC Electric Cylinders : CAL75-025-55-2 (Double Coil)
SMAC Electric Cylinders : CAL75-025-55-2 (Double Coil)


Price: (Members Only)


Order #: CAL75-025-55-2


Encoder:


Vacuum:


Qty:
Description Specifications and Drawings


Electric Cylinders - High Speed and Compact Actuators

CAL75-025-55

The CA range of electric cylinders have been designed with the most demanding of automation tasks in mind and are the first real linear motors to challenge pneumatic devices. They offer long life and much more precise and repeatable force control and positioning than conventional pneumatic devices. The conventional shape and multiple mounting points allow the electric cylinders to be directly retrofitted in most cases.

Features:

  • Voltage (DC): 24
  • Size Dia. x L (mm): Ø75x262
  • Stroke (mm): 25
  • Max. Force (N): 27
  • Cont. Force (N): 10.8
  • Force Const. (N/A): 22
  • Moving Mass (kg): 0.44
  • Max. Current (Amps): 1.3
  • Weight (kg): 5.1
