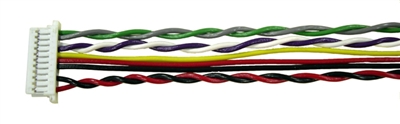

MotiCont: Optical Encoder Module Cable (CBL-01)
MotiCont: Optical Encoder Module Cable (CBL-01)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: CBL-01
.

Description


MotiCont: Optical Encoder Module Cable (CBL-01)

Cable For Encoders and Stages


Features:

  • Used with One-micron Optical Encoder Module

  • Used with Thirty-micron Optical Encoder Module


Pin Assignment

  • 1: (GRN) A+ Channel of Quadrature Encoder

  • 2: (PUR) A- Channel of Quadrature Encoder

  • 3: (WHT) B+ Channel of Quadrature Encoder

  • 4: (GRY) B- Channel of Quadrature Encoder

  • 5: (YEL) Reference Signal, Active High

  • 6: (RED) +5 VDC Power

  • 7: (BLK) Return for +5 VDC Power

  • 8: Not Used

  • 9: Not Used

  • 10: Not Used

  • 11: Not Used
