MotiCont: Optical Encoder Module Cable (CBL-07)
MotiCont: Optical Encoder Module Cable (CBL-07)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: CBL-07
.

Description


MotiCont: Optical Encoder Module Cable (CBL-07)

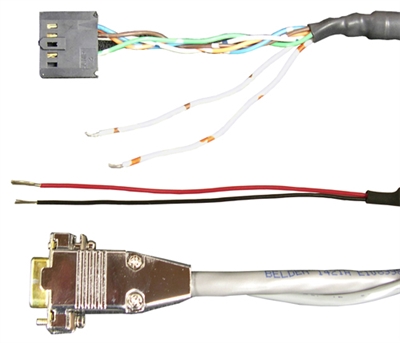

Cable For Actuators and Stages

Features:

  • CBL-07 is used to connect VCDS and LMA series to 600 series and 710 series

  • The DB9 female connector plugs into LMA series connector.

  • The 10 pin IDC connector plugs into the corresponding axis of Limit and Home Switch Connector in the 600 series.

  • The Red wire of the cable should be connected to terminal 3 of the 710 series.

  • The Black wire of the cable should be connected to terminal 4 of the 710 series.

  • The White-Brown wire of the cable should be connected to terminal 8 of the 710 series.

  • The White-Orange wire of the cable should be connected to terminal 9 of the 710 series.

  • The LMA series 710 series and 600 series reference manuals should also be consulted.
