Delta: AC Motor Drives (CH2000 Series)
With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

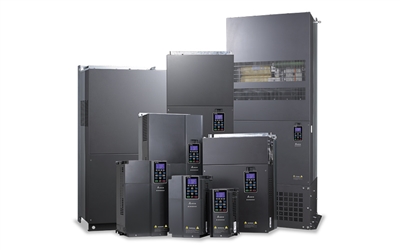

CH2000 Series

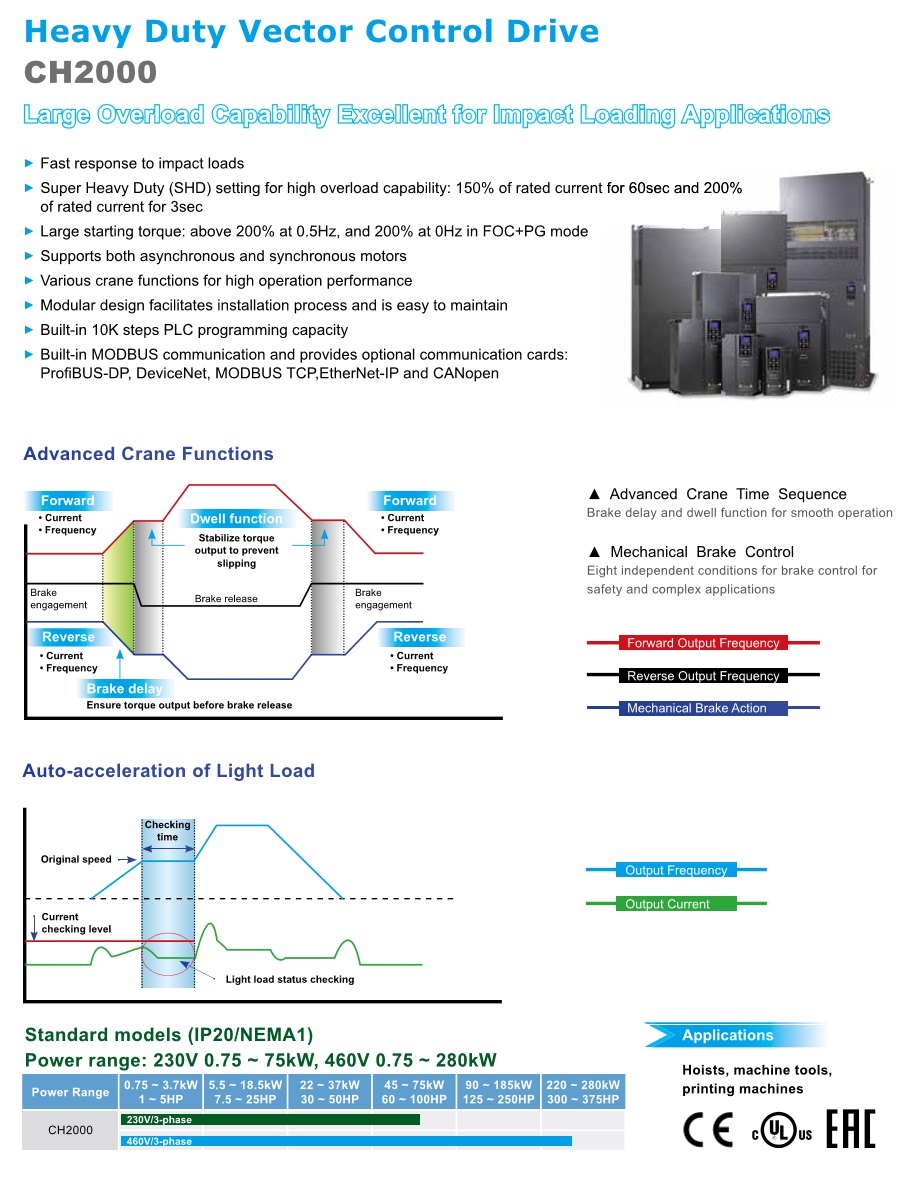

Using new drive technology, Delta presents you with its next generation CH2000 Series AC Motor Drive. Providing high performance with robust design the CH2000 is equipped with a larger starting torque and high overload capability to fulfill the needs of heavy load and impact loading applications.
Specifications:
Super Heavy Load (SHD)
Overload ability: rated current of 150% up to 60 seconds, 200% up to 3 seconds
Starting torque: above 200% at 0.5Hz in normal conditions, up to 200% at 0Hz in FOC+PG mode
Output frequency: 0.00~600.00Hz (for model above 90kW: 0.00~400Hz)
Induction motor and synchronous motor control
Built-in PLC program capacity: 10K steps
Noise reduction
Applications:
Crane
Processing machinery
Printing machinery
