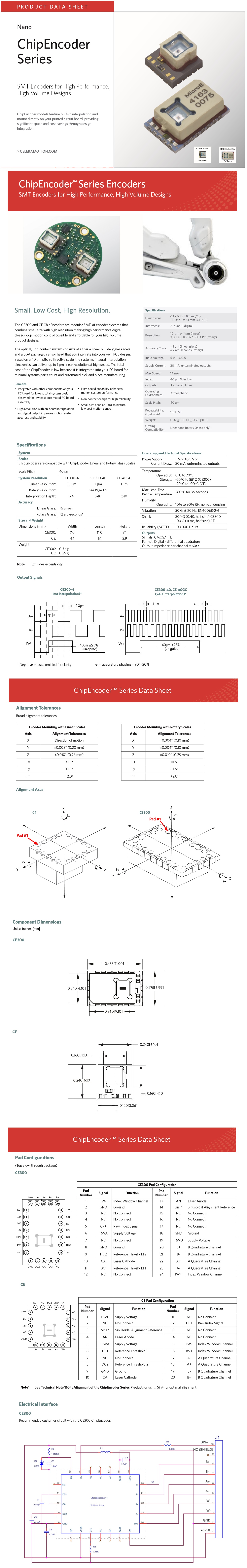

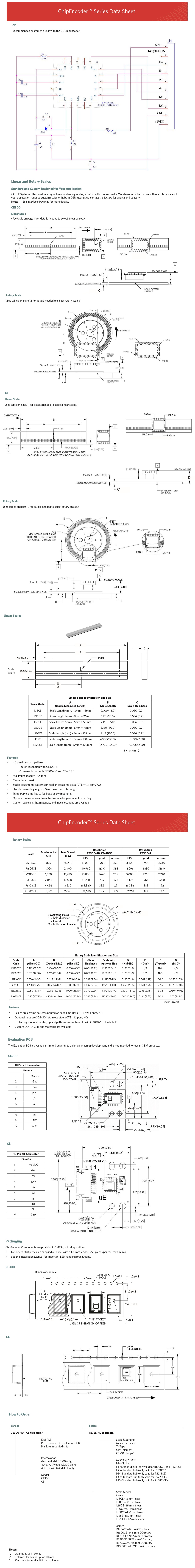

Description Specifications and Drawings


MicroE: Optical Linear Encoders (ChipEncoder™ Series)

Nano | Miniature Precision Encoders for the World’s Smallest Spaces

ChipEncoder is a modular digital interface SMT kit encoder system that combines small size with high resolution. ChipEncoder models feature built-in interpolation and mount directly on your PC board, providing significant space and cost savings through design integration.

Benefits

  • ChipEncoder breaks the price performance barrier to open new possibilities for your motion control designs

  • Integrates with other components on your PC board for lowest total system cost; designed for low cost automated PC board assembly

  • High resolution with on-board interpolation and digital output improves motion system accuracy and stability

  • High speed capability enhances motion system performance

  • Non-contact design for high reliability

  • Small size enables ultra-miniature, low cost motion control

Model: CE

Dimensions of 6x6mm, resolutions from 10µm to 1µm, A-quad-B digital interface, up to x40 interpolation in the sensor head, accuracy to +/-1 µm/m.

Model: CE300

Dimensions of 7x11mm, resolutions from 10µm to 1µm, A-quad-B digital interface, up to x40 interpolation in the sensor head, accuracy to +/-1 µm/m.

Model No.: CE-40GC, CE-40GC-PCB, CE300-4, CE300-4-PCB, CE300-40, CE300-40-PCB
