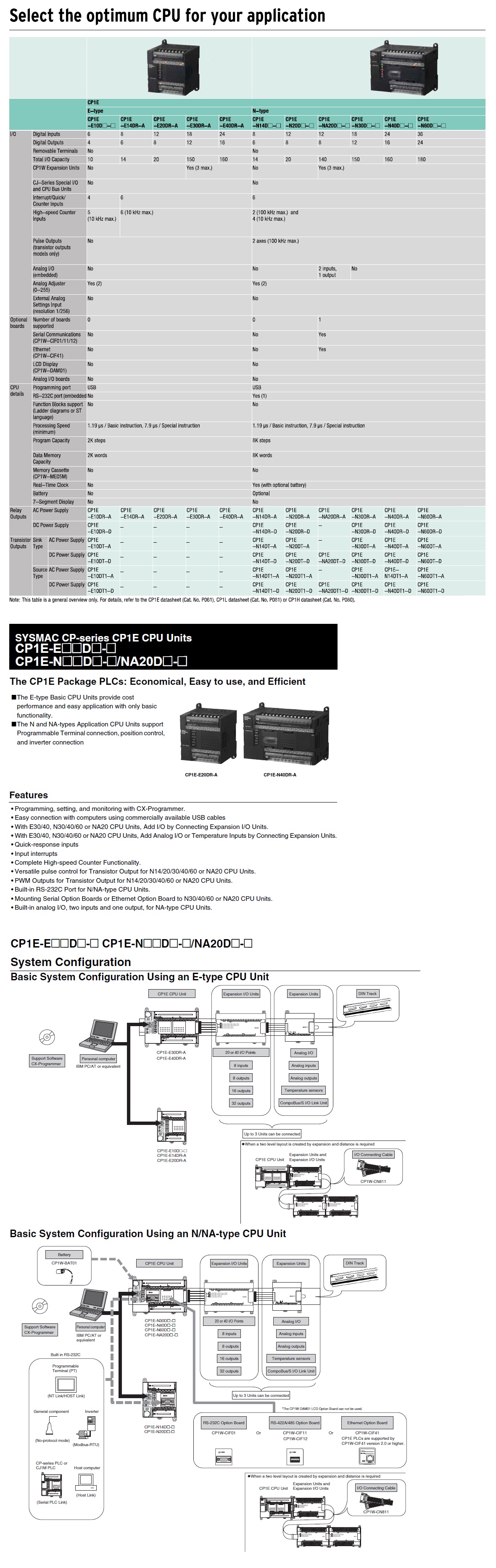

Omron: Compact PLC - Up to 320 I/Os (CP1E Series)

The economic machine controller

Our CP1E series offers all functionality you need to control relatively simple applications, including outstanding positioning capability. All CP1E CPUs offer high-speed USB for quick programming. The “Easy Input Editor” software feature allows faster programming by using an intuitive ladder editor to create an organized application program. The CP1E series comes in two different types: CP1E-E is the most economical, while the CP1E-N has a built-in real-time clock, motion control capabilities, and a serial port to connect an HMI, barcode reader, or other serial device. Several optional units are available to increase the functionality. As the CP1E series shares the same architecture as the CP1L, CP1H, CJ, and CS series, programs are compatible for memory allocations and instructions.

CP1W / CPM1A Expansion Units

Expand the capacity of your Compact PLC

A wide variety of expansion units such as Digital I/O, Analogue I/O and Remote I/O are available to create the application you need. These CP1W / CPM1A expansion units can be used with the CP1E series PLC (always verify the expansion capability and power supply rating of the selected CPU)
