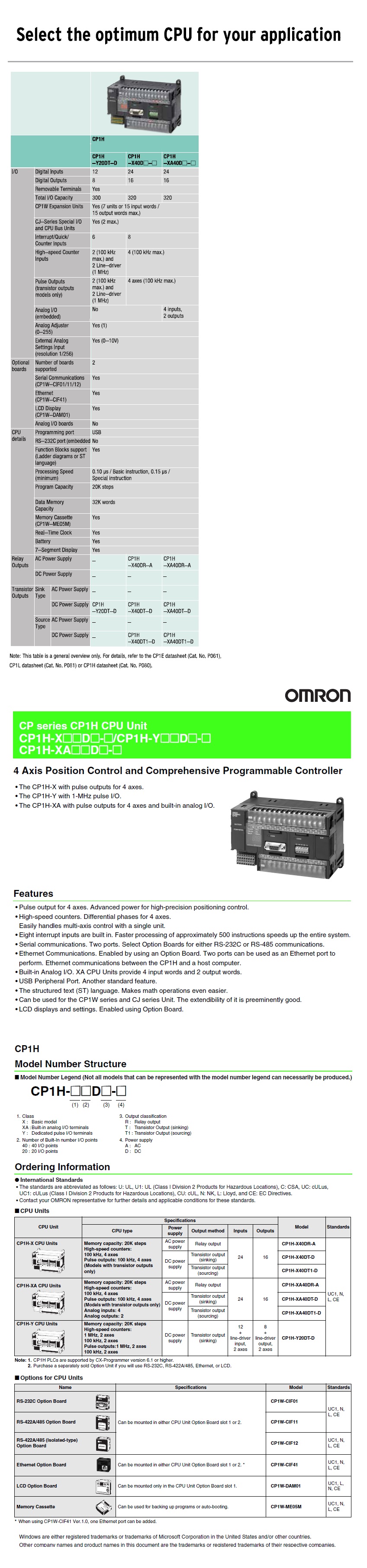

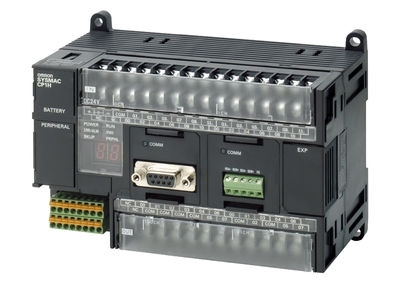

Omron: Compact PLC - Up to 320 I/Os (CP1H Series)
Fastest compact machine controller
Designed for compact machines, the CP1H is the advanced high-speed all-in-one compact PLC. Four high-speed counters and four pulse outputs are ideal for multi-axis positioning control. The CP1H-XA comes with four analogue inputs and two analogue outputs built-in. This makes it suitable for simple loop control, using the PLC's advanced PID control function with auto-tuning. The CP1H can be expanded with different I/O and supports up to two CJ1W special I/O units. This means that it is open to popular fieldbuses and supports most communication units of the CJ series.
CP1W / CPM1A Expansion Units
Expand the capacity of your Compact PLC
A wide variety of expansion units such as Digital I/O, Analogue I/O and Remote I/O are available to create the application you need. These CP1W / CPM1A expansion units can be used with the CP1E series PLC (always verify the expansion capability and power supply rating of the selected CPU)
CJ-Series Analogue I/O and Control Units
From basic Analogue I/O to advanced temperature control
CJ offers a wide choice of analogue input units, fit for any application, from low-speed, multi-channel temperature measurement to high-speed, high-accuracy data acquisition. Analogue outputs can be used for accurate control or external indication.
Advanced units with built-in scaling, filtering and alarm functions reduce the need for complex PLC programming. High-accuracy process I/O units support an extensive range of sensors, for fast and accurate data acquisition. Temperature Control units relieve the PLC CPU of PID calculations and alarm monitoring. These functions are handled autonomously by the unit, offering control performance and autotuning functions similar to stand-alone temperature controllers.
CJ-Series Position / Motion Control Units
Add motion control to any CJ-Series PLC
From simple position measurement to multi-axis synchronized motion control, CJ-Series offers a full range of units:
Counter Units gather position information from SSI- or incremental encoders. Actual positions are compared with internally stored target values.
CJ2M CPU Units have dedicated positioning functions that can be used by installing up to 2 Pulse I/O option modules.
Position- and Motion Control Units equipped with EtherCAT, can control multiple drives through a single high-speed link. Message routing through multiple communication layers allows the attached drives to be configured from any point in the control network.
CJ-Series Communication Units
Open to any communication
The CJ-Series provides both standardized open networks interfaces, and cost-efficient high-speed proprietary network links. Datalinks between PLCs, or to higher-level information systems can be made using Serial or Ethernet links, or the easy-to-use controller Link network.
Omron supports the 2 major field networks, DeviceNet and PROFIBUS-DP. For high-speed field I/O, Omron's own CompoBus/S offers an unsurpassed ease of installation. Fully user-configurable Serial and CAN-based communication can be used to emulate a variety of application-specific protocols.
EtherNet/IP units provide data link functions to share large amounts of data between PLCs. The new PROFINET-IO controller together with the SmartSlice modular I/O system offers ethernet-based I/O with controller- and network redundancy.
