Beckhoff: Industrial PC (CP22xx Series)

Panel PC with Intel® Core™ i processor. High-performance multi-touch built-in Panel PC.

The CP22xx built-in Panel PC series is characterized by a modern operating concept with multi-touch display as well as an advanced, elegant device design. It is designed for installation in the front of a control cabinet. The CP22xx combine reliable Beckhoff Control Panel design with state-of-the-art Industrial PC technology. The right display size is available for every application – in landscape or portrait orientation (horizontal/vertical). With their highly integrated 3½-inch motherboards, the CP22xx built-in Industrial PCs represent a high-performance platform for machine construction and plant engineering applications that can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.

CP22xx Panel PCs are equipped with Intel® Celeron® or Intel® Core™ i3, i5 or i7 processors and have one or two hard disks, SSDs or CFast cards or combinations thereof. With the on-board RAID controller, two same hard disks, SSDs or CFast cards can be mirrored.

CP22xx are supplied with a 24 V power supply unit, optionally also with an integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail close to the PC.

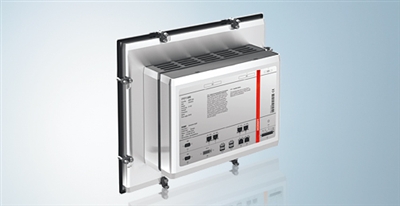

Data media, the fan and the lithium battery of the system clock are accessible from the rear under the fan cover.

Due to its two independent Ethernet interfaces the CP22xx is ideally suited as a compact central processing unit for an EtherCAT control system. A free Mini PCI slot enables different fieldbus cards or a third, independent Ethernet interface to be used. NOVRAM for fail-safe data storage can also be plugged into the Mini PCI slot.

Two free slots for PCIe modules can be optionally integrated in the PC housing, offering the possibility to extend the PC, e.g. with additional Ethernet interfaces.

Model No.: CP2211-0010, CP2212-0000, CP2212-0010, CP2215-0000, CP2215-0010, CP2216-0000, CP2216-0010, CP2218-0000, CP2218-0010, CP2219-0000, CP2219-0010, CP2221-0000, CP2221-0010, CP2224-0000, CP2224-0010
