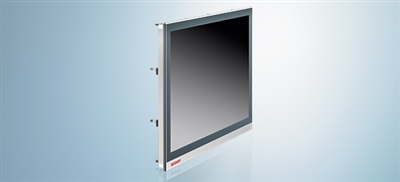

Beckhoff: Industrial PC (CP29xx Series) Product overview Multi-touch Control Panel
The multi-touch Control Panels are conceived both for control cabinet installation and for the mounting arm installation. The CP29xx built-in Panel series is implemented with IP 65 protection at the front and IP 20 at the rear. The CP39xx Control Panels for mounting arm installation feature all-round IP 65 protection. The panels CP29xx-0000 and CP39xx-0000 with DVI/USB Extended interface can be operated up to 50 m away from the Industrial PC. With CP-Link 4 – The One Cable Display Link – and CP29xx-0010 and CP39xx-0010 Control Panels the distance between Industrial PC and operating panel can be increased to 100 m.
Beckhoff offers the following display sizes: 7-inch, resolution of 800 x 480 11.6-inch, resolution 1366 x 768 15.6-inch, resolution 1366 x 768 18.5-inch, resolution 1366 x 768 21.5-inch, full HD resolution of 1920 x 1080 24-inch, full HD resolution of 1920 x 1080
12-inch, resolution of 800 x 600 (4:3) 15-inch, resolution 1024 x 768 (4:3) 19-inch, resolution 1280 x 1024 (5:4)
With the option C9900-M575 all of the displays are also available in portrait format. Customer-specific adaptations for a push-button extension individualize the multi-touch Control Panel series.
The new CP2xxx and CP3xxx Control Panel and Panel PC series
The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden solution for any application. The wide selection of models offers different display sizes and formats as well as custom designs. Even for single-touch users, this new panel generation offers an excellent price-to-performance ratio and represents an economical alternative to other systems. display sizes from 7-inch to 24-inch (16:9, 5:4, 4:3) landscape and portrait orientation multi-touch (PCT): e.g. for 5-finger or 2-hand touch operation high touch-point density for safe operation high-quality aluminum housing, milled from a solid block metal perimeter protection for the display front built-in or mounting arm models Control Panels with CP-Link 4 or DVI/USB Extended Technology Panel PCs with CPUs ranging from Intel® Atom™ to Core™ i7 optional electromechanical push-button extension
Model No.: CP2907-0000, CP2907-0010, CP2911-0000, CP2911-0010, CP2912-0000, CP2912-0010, CP2915-0000, CP2915-0010, CP2916-0000, CP2916-0010, CP2918-0000, CP2918-0010, CP2919-0000, CP2919-0010, CP2921-0000, CP2921-0010, CP2924-0000, CP2924-0010
|
|
|
 |
|
 |
|
