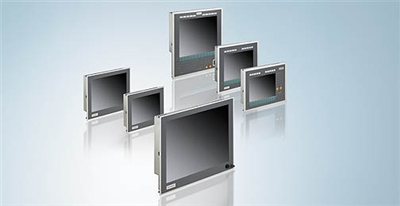

Beckhoff: Industrial PC (CP62xx Series)

The slimline built-in Industrial PC with 3½-inch motherboard


The CP62xx built-in Panel PC-series is designed for installation in the front of a control cabinet. The CP62xx series combines the Beckhoff Control Panel design with state-of-the-art Industrial PC technology. The right display size and keyboard are available for every application. With their highly integrated 3½-inch motherboards, the CP62xx built-in Industrial PCs represent a high-performance platform for machine construction and plant engineering applications that can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.

The CP62xx Panel PCs are available with a choice of Intel® processors. The CP62xx Panel PCs can be equipped with a CFast card and a 2½-inch hard disk or SSD. Units containing the more powerful Intel® Core™ i3/i5/i7 processors feature a fan cartridge with speed-controlled fans supported by dual ball bearings. In front of the fan cartridge a 2 cm space is required for ventilation. In each configuration the Panel PCs of this series are approved for ambient temperatures between 0 and 55 °C.

The CP62xx are supplied with a 24 V power supply unit, optionally also with an integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail close to the PC.

Due to its two independent Ethernet interfaces the CP62xx is ideally suited as a compact central processing unit for an EtherCAT control system. A free Mini PCI slot enables different fieldbus cards or a third, independent Ethernet interface to be used. NOVRAM for fail-safe data storage can also be plugged into the Mini PCI slot.

The CP62xx can optionally be extended with PCIe module or plug-in card slots.

Model No.: CP6201-0000-0020, CP6201-0000-0050, CP6201-0000-0060, CP6201-0001-0020, CP6201-0001-0050, CP6201-0001-0060, CP6201-0020-0020, CP6201-0020-0050, CP6201-0020-0060, CP6201-0021-0020, CP6201-0021-0050, CP6201-0021-0060, CP6202-0000-0020, CP6202-0000-0050, CP6202-0000-0060, CP6202-0001-0020, CP6202-0001-0050, CP6202-0001-0060, CP6202-0020-0020, CP6202-0020-0050, CP6202-0020-0060, CP6202-0021-0020, CP6202-0021-0050, CP6202-0021-0060, CP6203-0000-0020, CP6203-0000-0050, CP6203-0000-0060, CP6203-0001-0020, CP6203-0001-0050, CP6203-0001-0060, CP6203-0020-0020, CP6203-0020-0050, CP6203-0020-0060, CP6203-0021-0020, CP6203-0021-0050, CP6203-0021-0060, CP6207-0000-0020, CP6207-0001-0020, CP6209-0000-0020, CP6209-0001-0020, CP6211-0000-0020, CP6211-0000-0050, CP6211-0000-0060, CP6211-0001-0020, CP6211-0001-0050, CP6211-0001-0060, CP6212-0000-0020, CP6212-0000-0050, CP6212-0000-0060, CP6212-0001-0020, CP6212-0001-0050, CP6212-0001-0060, CP6213-0000-0020, CP6213-0000-0050, CP6213-0000-0060, CP6213-0001-0020, CP6213-0001-0050, CP6213-0001-0060, CP6219-0000-0020, CP6219-0001-0020, CP6221-0000-0020, CP6221-0000-0050, CP6221-0000-0060, CP6221-0001-0020, CP6221-0001-0050, CP6221-0001-0060, CP6221-0002-0020, CP6221-0002-0050, CP6221-0002-0060, CP6222-0000-0020, CP6222-0000-0050, CP6222-0000-0060, CP6222-0001-0020, CP6222-0001-0050, CP6222-0001-0060, CP6222-0002-0020, CP6222-0002-0050, CP6222-0002-0060, CP6223-0000-0020, CP6223-0000-0050, CP6223-0000-0060, CP6223-0001-0020, CP6223-0001-0050, CP6223-0001-0060, CP6223-0002-0020, CP6223-0002-0050, CP6223-0002-0060, CP6229-0000-0020, CP6229-0001-0020, CP6231-0000-0020, CP6231-0000-0050, CP6231-0000-0060, CP6231-0001-0020, CP6231-0001-0050, CP6231-0001-0060, CP6231-0002-0020, CP6231-0002-0050, CP6231-0002-0060, CP6232-0000-0020, CP6232-0000-0050, CP6232-0000-0060, CP6232-0001-0020, CP6232-0001-0050, CP6232-0001-0060, CP6232-0002-0020, CP6232-0002-0050, CP6232-0002-0060, CP6233-0000-0020, CP6233-0000-0050, CP6233-0000-0060, CP6233-0001-0020, CP6233-0001-0050, CP6233-0001-0060, CP6233-0002-0020, CP6233-0002-0050, CP6233-0002-0060, CP6242-0000-0020, CP6242-0000-0050, CP6242-0000-0060, CP6242-0001-0020, CP6242-0001-0050, CP6242-0001-0060
