Beckhoff: Industrial PC (CP66xx Series)
Beckhoff: Industrial PC (CP66xx Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: CP66XX


Model No.:


.

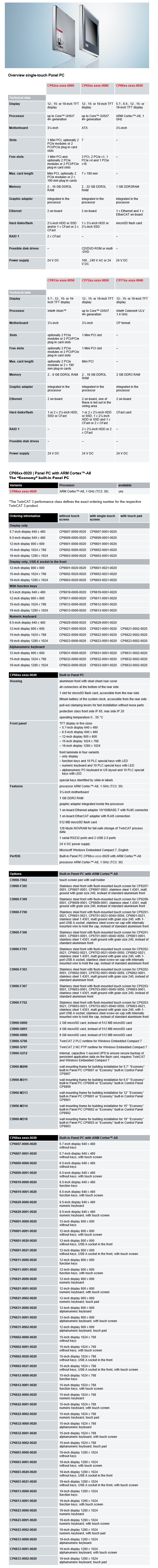

Description Specifications and Drawings


Beckhoff: Industrial PC (CP66xx Series)

CP66xx-0020 | Panel PC with ARM Cortex™-A8. The “Economy” built-in Panel PC.

The built-in Panel PCs of the CP66xx series have a wide range of uses including remote desktop display or CP-Link 3 client. They are available in five display sizes: 5.7, 6.5, 12, 15 or 19 inches.

CP66xx Panel PCs are equipped with an ARM Cortex™-A8 processor. They are equipped with a microSD card and have no rotating parts.

CP66xx are supplied with a 24 V power supply unit, optionally also with a capacitive uninterruptible power supply (second UPS).

The microSD card and the lithium battery of the system clock are accessible from the rear in the connector bracket.

These devices are ideally suited as small controllers for machine construction and plant engineering applications in conjunction with TwinCAT automation software under Windows Embedded Compact 7.

Due to its independent Ethernet and EtherCAT interfaces the CP66xx is ideally suited as a compact central processing unit for an EtherCAT control system. NOVRAM for fail-safe data storage is integrated on the motherboard.


Model No.: CP6601-0000-0020, CP6601-0001-0020, CP6601-0020-0020, CP6601-0021-0020, CP6602-0000-0020, CP6602-0001-0020, CP6602-0020-0020, CP6602-0021-0020, CP6603-0000-0020, CP6603-0001-0020, CP6603-0020-0020, CP6603-0021-0020, CP6607-0000-0020, CP6607-0001-0020, CP6609-0000-0020, CP6609-0001-0020, CP6611-0000-0020, CP6611-0001-0020, CP6612-0000-0020, CP6612-0001-0020, CP6613-0000-0020, CP6613-0001-0020, CP6619-0000-0020, CP6619-0001-0020, CP6621-0000-0020, CP6621-0001-0020, CP6621-0002-0020, CP6622-0000-0020, CP6622-0001-0020, CP6622-0002-0020, CP6623-0000-0020, CP6623-0001-0020, CP6623-0002-0020, CP6629-0000-0020, CP6629-0001-0020, CP6631-0000-0020, CP6631-0001-0020, CP6631-0002-0020, CP6632-0000-0020, CP6632-0001-0020, CP6632-0002-0020, CP6633-0000-0020, CP6633-0001-0020, CP6633-0002-0020
