Synchronous Linear Motor (CSLM) Technology
Being a leader in linear motor design and
manufacturing, E-Motion provides industry with the widest range of linear
motors. Linear motors eliminate mechanical transmission devices, such as lead
screw nut institutions, gear rack agencies, belt-driven structures, etc. The
adoption of direct drive technology greatly helps to optimize precision, speed,
acceleration, stability and efficiency, while substantially prolonging product
life. Cyclone linear motors adopt direct drive and are available in two
different configurations – “U- type” and “Flat-type” versions, U-type Synchronous
Linear motor (CSLU) and Flat-type Synchronous Linear motor (CSLF), which are used
in thousands of successful applications worldwide.
DDL
Motors: CSLF 9 Series
CSLF Series consist of a low profile, low-cost forcer
and rare-earth magnet track. They are designed for unlimited travel stroke positioning
applications with high thrust, high speed and acceleration, with optimal static
and dynamic performance. The motors are designed to integrate easily with
equipment, providing closed–loop servo with a high degree of positioning
accuracy and repeatability.

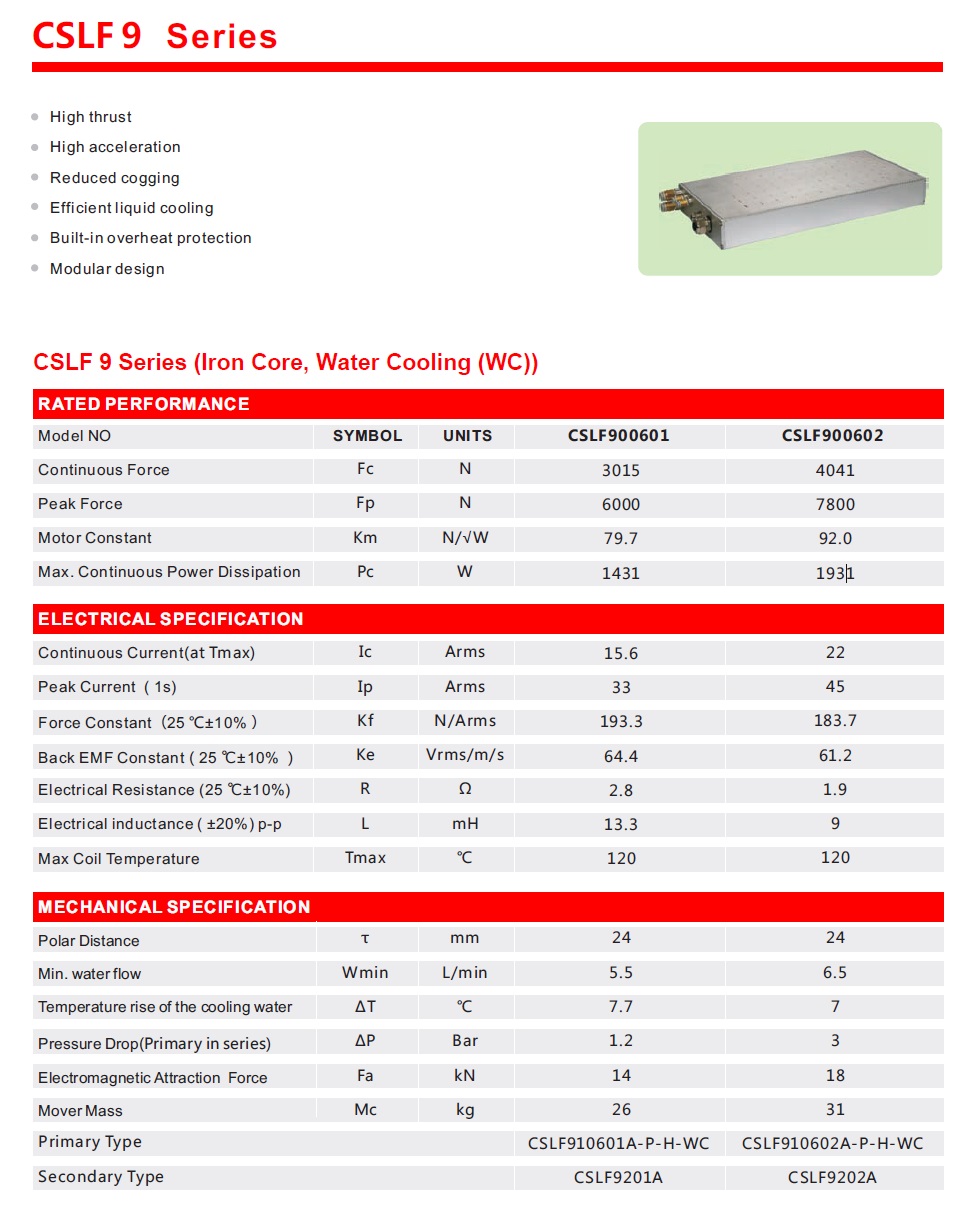

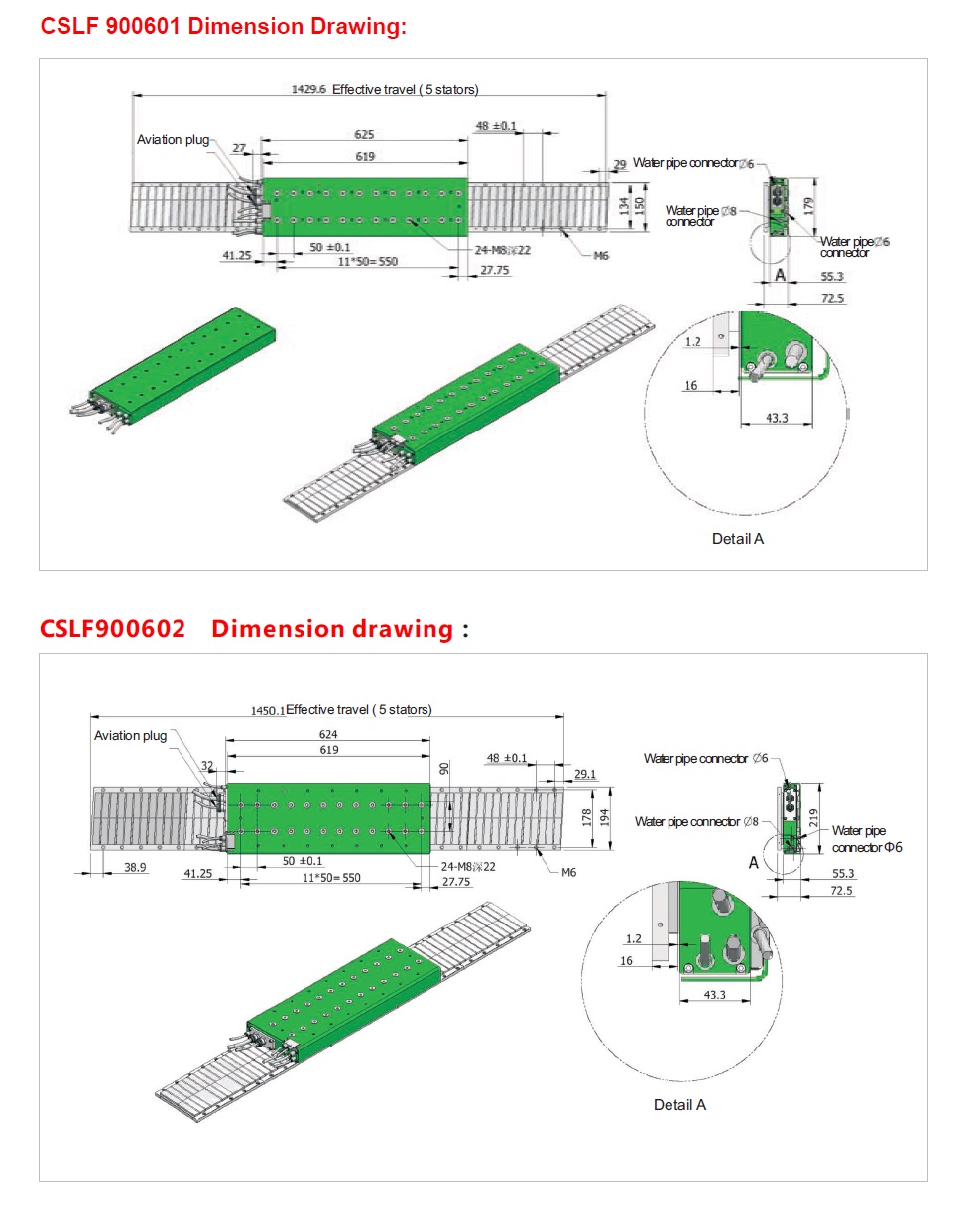

CSLF 9 Series
Features:
- Two Models
- High thrust
- High acceleration
- Reduced cogging
- Efficient liquid cooling
- Built-in overheat protection
- Modular design
- Continuous Force (N): 3015
- Peak Force (N): 6000
- Motor Constant (N/√W): 79.7
- Max Coil Temperature (⁰C): 120
- Polar Distance (mm): 24
- Moving Mass (kg): 26
