Cyclone
Cyclone
Synchronous Linear Motor (CSLM) Technology
Being a leader in linear motor design and
manufacturing, E-Motion provides industry with the widest range of linear
motors. Linear motors eliminate mechanical transmission devices, such as lead
screw nut institutions, gear rack agencies, belt-driven structures, etc. The
adoption of direct drive technology greatly helps to optimize precision, speed,
acceleration, stability and efficiency, while substantially prolonging product
life. Cyclone linear motors adopt direct drive and are available in two
different configurations – “U- type” and “Flat-type” versions, U-type Synchronous
Linear motor (CSLU) and Flat-type Synchronous Linear motor (CSLF) , which are used
in thousands of successful applications worldwide.
DDL
Motors: CSLU 2 Series
CSLU series linear motors eliminate ripple force and
electromagnetic attraction to allow for extremely smooth motion and very tight velocity
and position control. These linear motors are ideal for any application that
requires low load, high acceleration and high accuracy. They are widely applied
in semiconductor, Flat-Panel Display (FPD), printing, medical treatment equipment,
machine vision inspection equipment, surface mounting for electronic parts, PCB
detection equipment, textile machinery, and in many other industrial automation
applications.

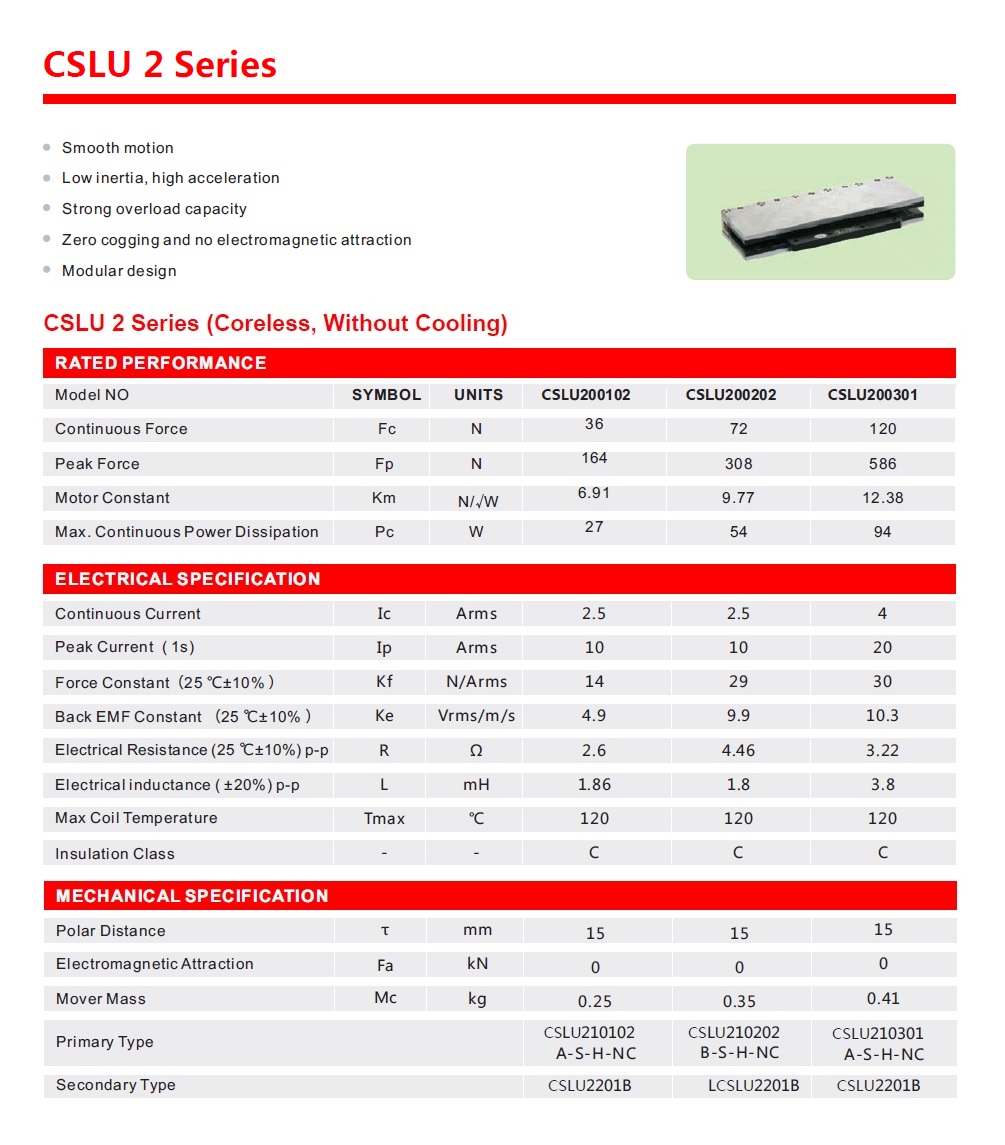

CSLU 2 Series
Features:
- Three Models
- Smooth motion
- Low inertia, high acceleration
- Strong overload capacity
- Zero cogging and no electromagnetic attraction
- Modular design
- Continuous Force (N): 120
- Peak Force (N): 586
- Motor Constant (N/√W): 12.38
- Max Coil Temperature (⁰C): 120
- Polar Distance (mm): 15
- Moving Mass (kg): 0.41

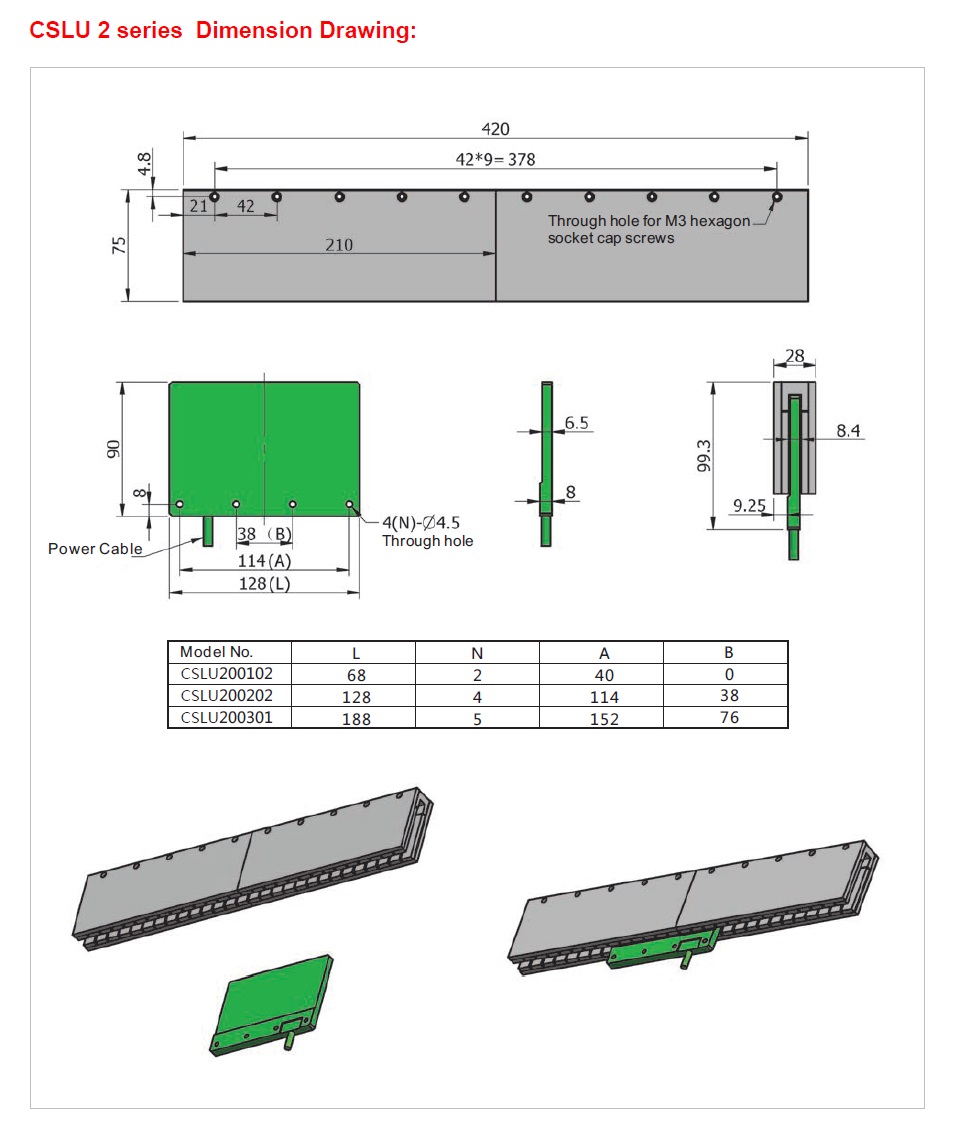

- CSLU210301A-S-H-NC Dimensions (mm): 420x75x28
- CSLU2201B Dimensions (mm): 188x90x8
