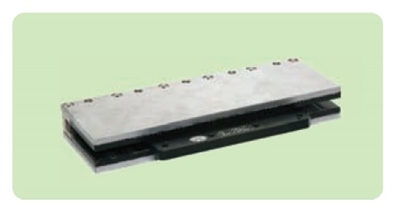

Cyclone DDL Motors: CSLU 3 Series: CSLU300101
Cyclone DDL Motors: CSLU 3 Series: CSLU300101


Price: (Members Only)


Order #: CSLU3201A-KITS
Qty:

Description Specifications and Drawings


Cyclone


Cyclone Synchronous Linear Motor (CSLM) Technology

Being a leader in linear motor design and manufacturing, E-Motion provides industry with the widest range of linear motors. Linear motors eliminate mechanical transmission devices, such as lead screw nut institutions, gear rack agencies, belt-driven structures, etc. The adoption of direct drive technology greatly helps to optimize precision, speed, acceleration, stability and efficiency, while substantially prolonging product life. Cyclone linear motors adopt direct drive and are available in two different configurations – “U- type” and “Flat-type” versions, U-type Synchronous Linear motor (CSLU) and Flat-type Synchronous Linear motor (CSLF) , which are used in thousands of successful applications worldwide.

DDL Motors: CSLU 3 Series

CSLU series linear motors eliminate ripple force and electromagnetic attraction to allow for extremely smooth motion and very tight velocity and position control. These linear motors are ideal for any application that requires low load, high acceleration and high accuracy. They are widely applied in semiconductor, Flat-Panel Display (FPD), printing, medical treatment equipment, machine vision inspection equipment, surface mounting for electronic parts, PCB detection equipment, textile machinery, and in many other industrial automation applications.


CSLU 3 Series

Features:

  • Four Models
  • Smooth motion
  • Low inertia, high acceleration
  • Strong overload capacity
  • Zero cogging and no electromagnetic attraction
  • Modular design
  • Continuous Force (N): 49
  • Peak Force (N): 316
  • Motor Constant (N/√W): 6.52
  • Max Coil Temperature (⁰C): 120
  • Polar Distance (mm): 15
  • Moving Mass (kg): 0.23
  • 101A (B) Dimensions (mm): 420x83x38.5
  • CSLU3201A Dimensions (mm): 68x98.5x24.5
