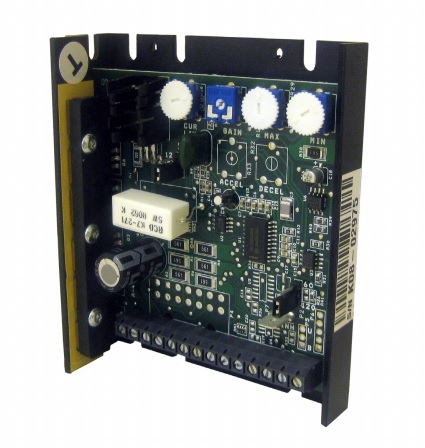

Transmotec DC Motor Drivers (Brushless) DB-11.40-5C
Transmotec DC Motor Drivers (Brushless) DB-11.40-5C


Price: (Members Only)


Order #: DB-11.40-5C
Qty:

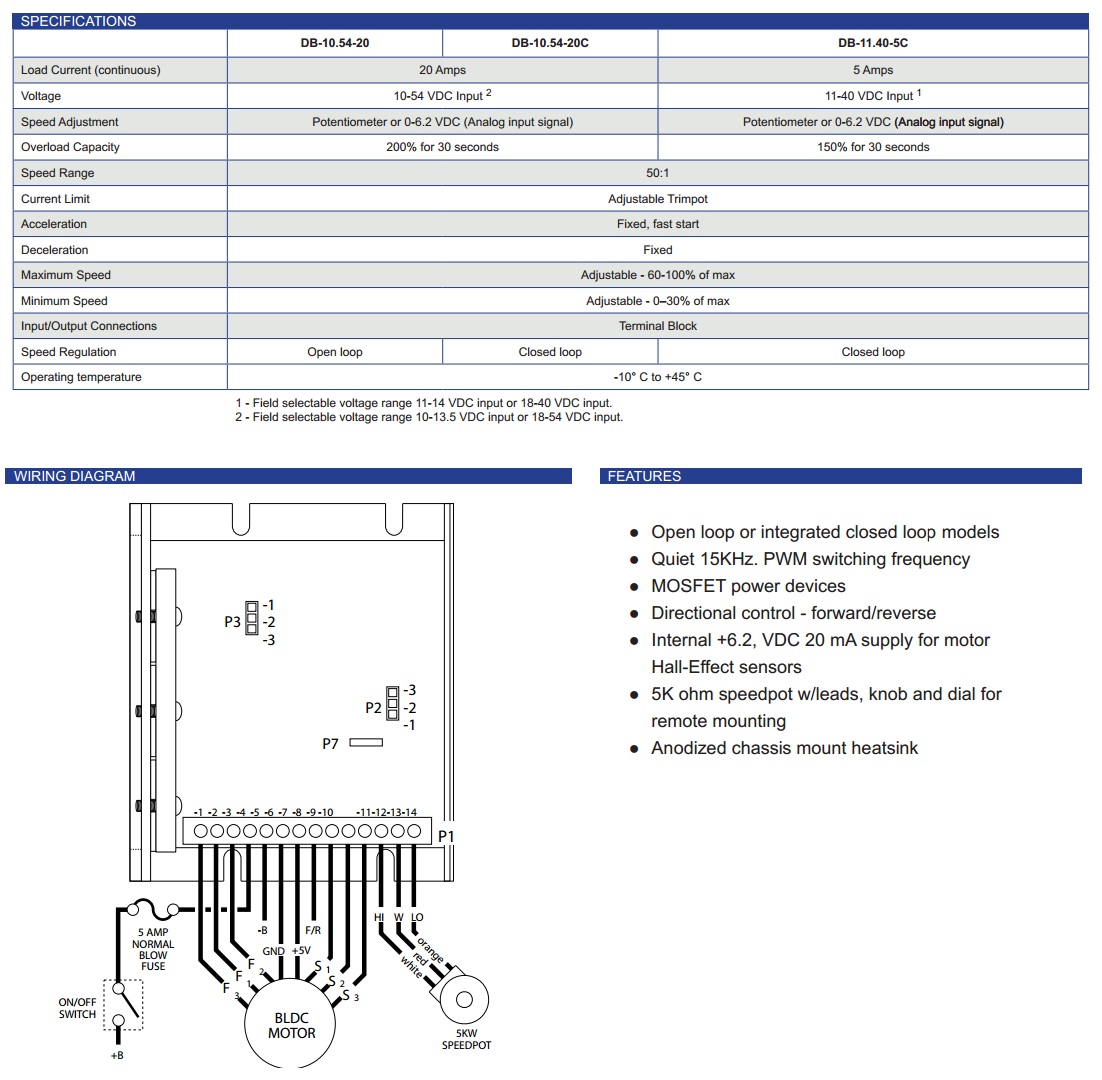

Description Specifications and Drawings


DB Series

DB Series is a family of brushless DC motor controls designed to provide commutated power and variable speed control for the standard 3 phase brushless DC motors. The controls operate in a basic open loop or closed loop configuration with either 60° or 120° brushless DC motors. Compact, economical, and efficient, the DB Series is ideal where high torque, high speed and quiet operation is needed.

The DB Series controls can also be provided with a pluggable connector and fixed settings for OEM applications.

Features:

  • Open loop or integrated closed loop models
  • Quiet 15KHz. PWM switching frequency
  • MOSFET power devices
  • Directional control - forward/reverse
  • Internal +6.2, VDC 20 mA supply for motor
  • Hall-Effect sensors
  • 5K ohm speed pot w/leads, knob and dial for remote mounting
  • Anodized chassis mount heat sink
  • Load Current (Amps): 5
  • Voltage: 11-40 VDC Input 1
  • Overload Capacity: 150% for 30 Seconds
  • Speed Range: 50:1
  • Current Limit: Adjustable Trim pot
  • Max. Speed: 60-100% of Max.
  • Min. Speed: 0-30% of Max.
  • Operating Temperature: -10 °C to + 45 °C
  • Dimension (mm): 92.1 x 108.0x 33.0
  • Weight (g): 170
DB Series Catalog
