SICK: Incremental Fixed Count Encoders (DBS36 Series)
SICK: Incremental Fixed Count Encoders (DBS36 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DBS36
.

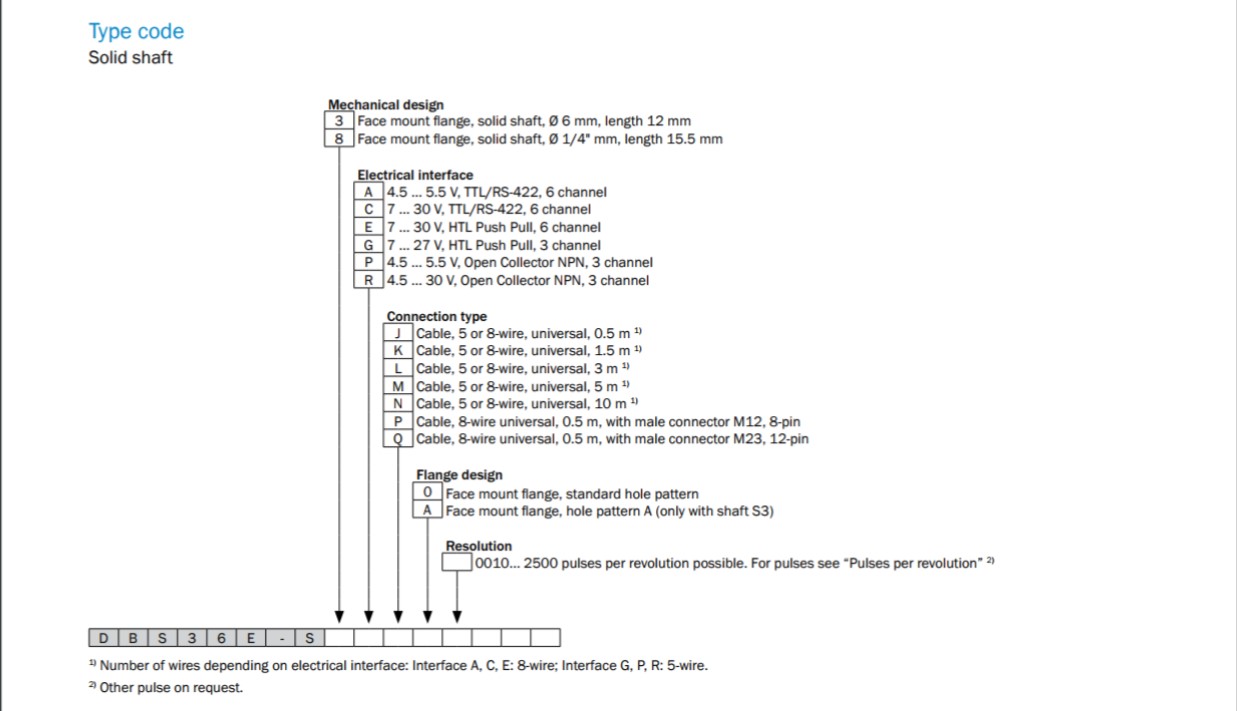

Description Ordering Information


DBS36

(Incremental Fixed Count Encoders)

Description:

Incremental encoders are used when retention of absolute position upon power loss is not required. Some programmable encoder variants from SICK allow from 1 ... 65,536 lines, zero-pulse width and level of output signals programmable by customer. Fixed count encoders from SICK contain a fixed number of lines that produce a corresponding number of pulses per revolution (PPR).

Features:

  • Connection with universal cable outlet

  • Face mount flange with 3 mounting hole patterns and servo groove

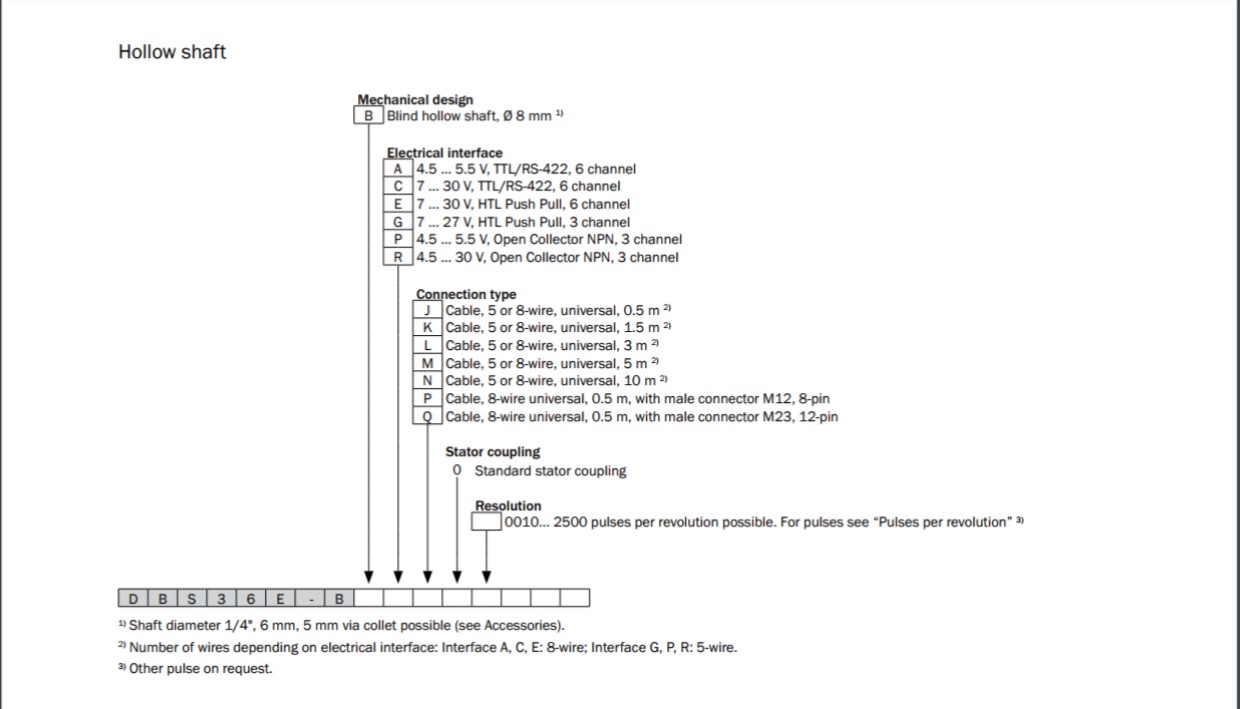

  • Hollow shaft with universal stator coupling

  • Compact diameter of 37 mm

  • Electrical interfaces: TTL/RS-422, HTL/push pull and Open

  • Collector NPN

  • Available PPR: 100 to 2,500

  • Temperature range: –20 °
