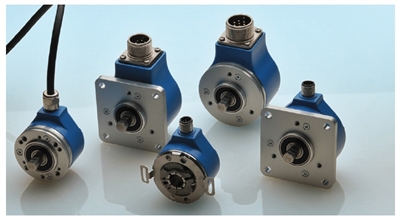

DFS2x Series
(Incremental Fixed Count Encoders)
Product Description
The DFS2x family of products are high-resolution incremental encoders that provide industry standard 2 and 2.5-inch mechanical interfaces and are available as factory-configured or programmable devices. Factory-configured encoders can be ordered with TTL, HTL, or open-collector outputs as well as integer resolutions from 1 to 65,536 counts per revolution.
Programmable encoders allow the user to select the integer resolution and either TTL or HTL outputs. DFS2x encoders incorporate rugged internal technology that allows them to operate over a wide temperature range and tolerate twice the shock & vibration levels of comparable encoders. The flexibility and reliability of these encoders allow you to confidently standardize on a single encoder platform for position sensing across a wide variety of applications while simultaneously reducing your spare part requirements.
At a glance:
Compact 2-inch and 2.5-inch design
Integer resolutions from 1 to 65,536 counts per revolution.
Compatible with PGT-08-S PC based programming tool.
User programmable DFS2x encoders allow the user to configure resolution, zero pulse phase, zero pulse position, and output electrical interface.
Flange, hollow shaft, and blind hollow shaft options.
M12 connector, MS connector, and flying lead cable connection options.
Benefits:
Programmable DFS2x encoders simplify machine designs by allowing the same model encoder to be used for different applications.
Spare parts inventory requirements are reduced because a single programmable DFS2x encoder can be used across a variety of applications.
Flexible electrical interface con-figurations reduces the risk that the selected encoder will be incompatible with input electronics.
High-resolution provides more precise positioning for applications that require high accuracy. Wide operating temperature range and high tolerance of shock and vibration reduces downtime on machinery.
