SICK: Incremental Fixed Count Encoders (DKS40 Series)
SICK: Incremental Fixed Count Encoders (DKS40 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DKS40
.

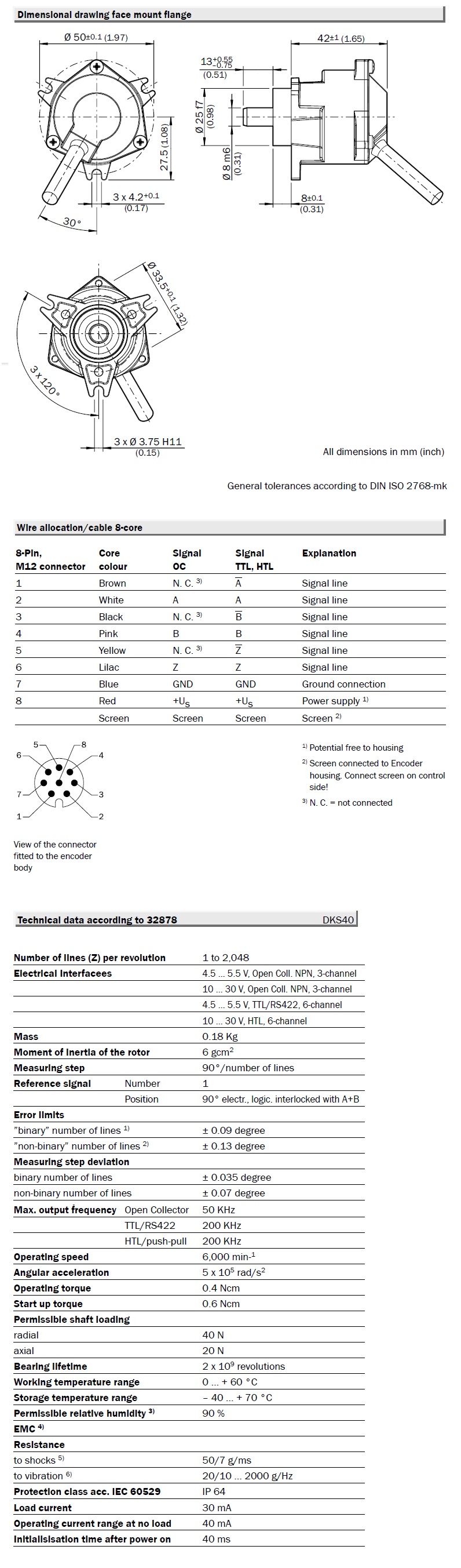

Description Specifications and Drawings


DKS40

Incremental Encoders

Description:

The DKS40 Incremental Encoders offers exceptional quality for its price and its range of application. Its housing is a solid zinc die-casting and is extremely compact in its design, having an external diameter of only 50 mm. As a consequence, valuable space can be spared when installed.

By adopting highly successful Mini-Disc technology, the DKS40 is extremely robust and can resist high levels of shock and vibration. In addition the DKS40 has a very high protection class, IP 64.

Features:

  • Compact housing Ø 50 mm

  • Robust and low cost incremental encoder

  • Electrical interfaces Open Collector, TTL/RS422 and HTL/push pull

  • Cable outlet for radial or axial use

  • Connector outlet M12

  • Face mount flange available

  • Number of lines from 1 … 2,048 feasible
