SICK: Wheeled Encoders (DKV60 Series)
SICK: Wheeled Encoders (DKV60 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DKV60
.

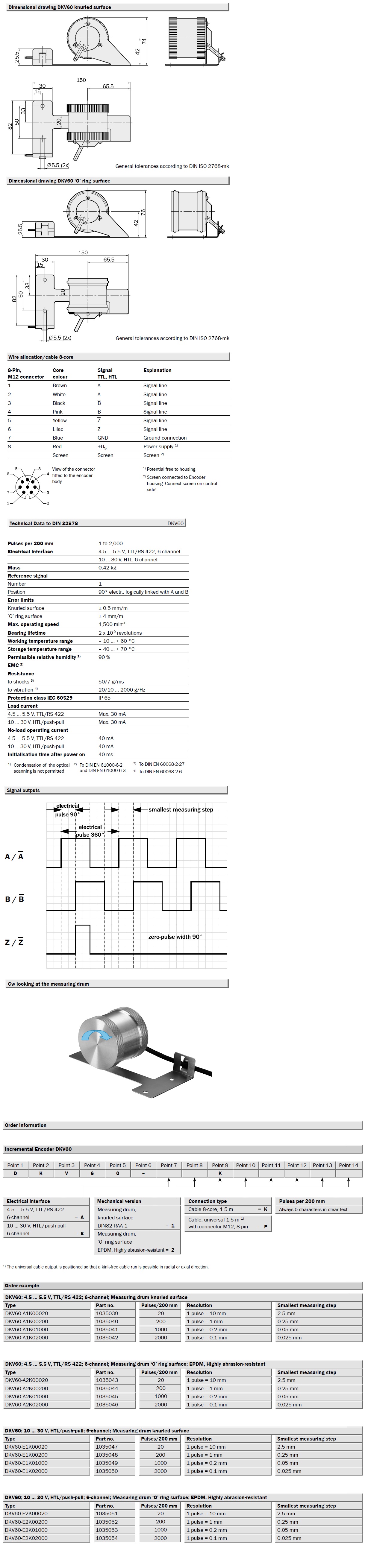

Description Specifications and Drawings


DKV60

(Incremental Measuring Wheel Encoders)

Product Description:

The DKV60 Incremental Measuring Wheel Encoder is a cost-effective and extremely compact solution for the direct determination of position and speed of a conveyor belt.

The DKV60 Incremental Measuring Wheel Encoder can be fitted directly to the conveyor belt, without the need of any mechanical accessories.

The basis of the product is the DKS40 Incremental Encoder. The DKS40 and therefore the DKV60 utilize Mini-Disc technology, making the DKV60, extremely robust and resistant to shock and vibration. The DKV60 also features a high protection rating (IP 65).

Possible product variations:

  • Interface: TTL/RS422, HTL/push-pull

  • Measuring Drum: Knurled surface, ‘O’ ring surface

  • Cable Outlet: 1.5 m

The product versatility enables many uses, such as:

  • Woodworking machinery

  • Steel and sheet processing machinery

  • Storage and conveying technology

  • Sorting systems

  • Conveyor belts

  • Textile machinery

  • Printing and paper
