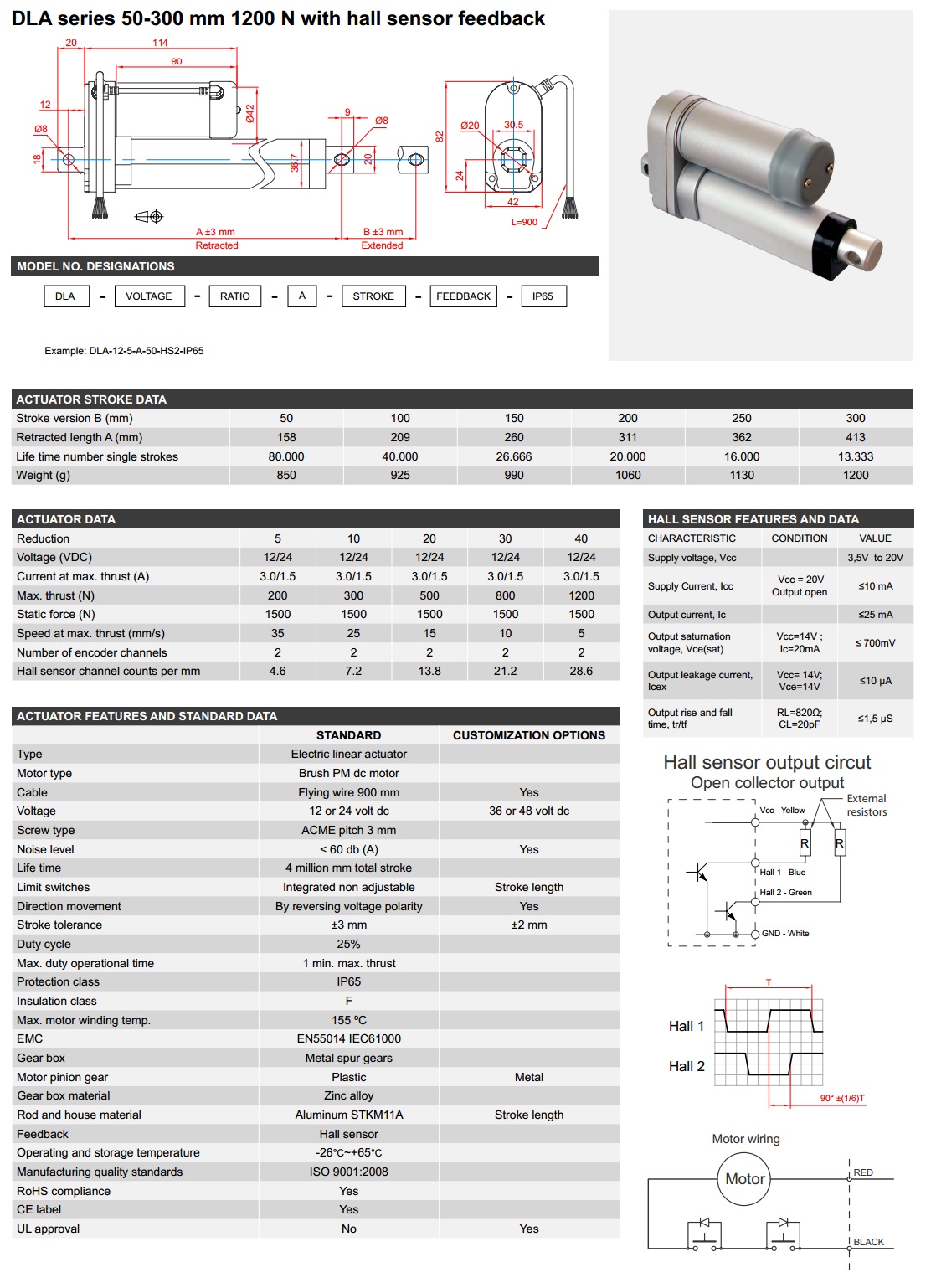

Description Specifications and Drawings

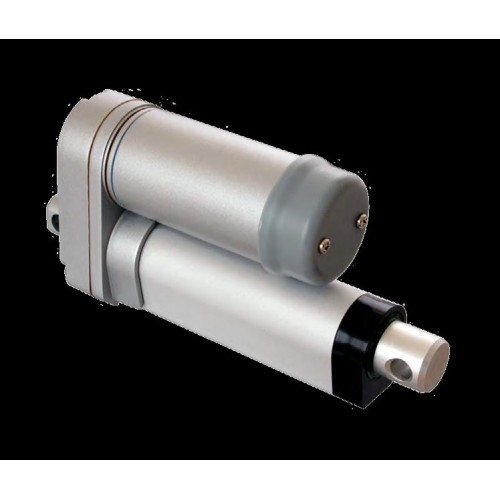

DLA Series (50-300 mm 1200 N with Hall Sensor Feedback )

Small lightweight dc motor actuators with ACME lead screws and integrated built in preset micro switches for end stop. The actuators also have an internal diode wiring which enables the change of direction by simply reversing the applied voltage polarity.

In case of adjusting, the stroke length customized actuators are available. The integral limit switches are not made to be adjustable. Speed and force can be reduced by lowering the applied voltage and overload can be protected by limiting the current to the actuator.

Absolute or incremental position feedback is possible using the potentiometer or hall sensor models. Transformers and hand set controls are also available.

Features:

  • Integrated preset limit switches
  • Protection IP65
  • 12 or 24 VDC
  • Aluminum outer tube and stroke rod
  • Zinc alloy housing
  • Operating temperature - 26°C ~ +65°C
  • Load thrust up to 1200 N
  • Duty cycle 25%
  • Static force 1500 N
  • Voltage: 12
  • Ratio: 10
  • Current at Max. Thrust (A): 3.0/1.5
  • Max. Thrust (N): 300
  • Static Force (N): 1500
  • Speed at Max. Thrust (mm/s): 25
  • Number of Encoder Channels: 2
  • Hall Sensor Channel Counts/mm: 7.2
  • Stroke (mm): 100-250
  • Retracted Length (mm): 209-362
  • Lifetime # of single strokes: 16,000-40,000
  • Weight (g): 925-1130

Models:

  • DLA-12-10-A-100-HS2-IP65
  • DLA-12-10-A-150-HS2-IP65
  • DLA-12-10-A-200-HS2-IP65
  • DLA-12-10-A-250-HS2-IP65
