MYCOM: LSI Pulse Generator (DMP2042 Chip Series)
MYCOM: LSI Pulse Generator (DMP2042 Chip Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DMP2042
.

Description Specifications and Drawings

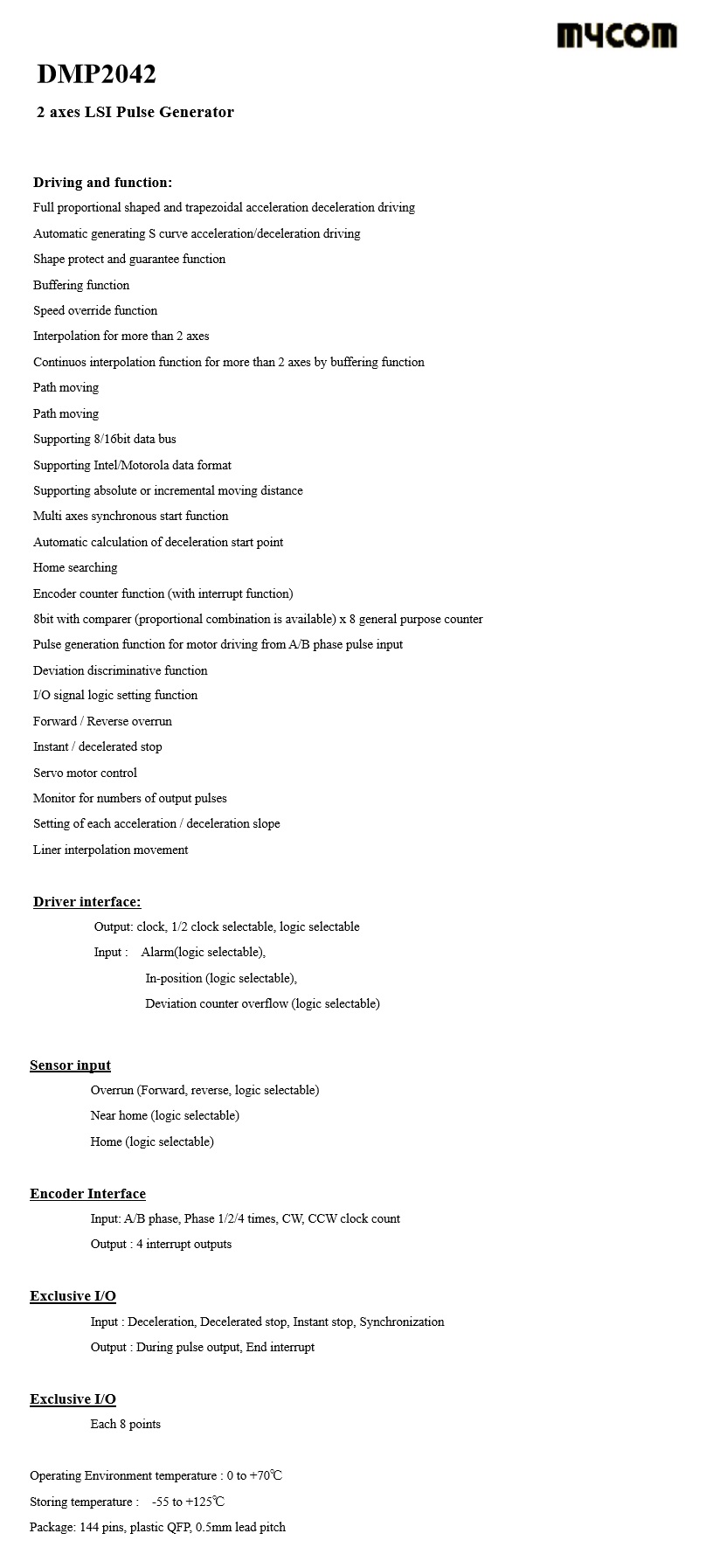

MYCOM: LSI Pulse Generator (DMP2042 Chip Series)


Features:

  • 2 axes control by one chip

  • Full proportional user setting acceleration/deceleration curve function which is realized by simple free setting of user image.

  • Automatic generating S curve acceleration/deceleration by same parameter setting with trapezoidal driving.

  • Buffering function which can store maximum 3 sets of driving parameter.

  • Shape protection function when changing speed during driving.

  • Shape protection function which automatically correct contradictory parameter setting.

  • Speed override function.

  • Automated continuous interpolated driving/path driving.

  • Absolute/incremental count of the numbers of output pulses.

  • Wide range managing counter.

  • 32 bit encoder counter / general purpose counter of automatic bite length.

  • 8 bit x 8 general purpose counter with compare, available to connect bite by bite (maximum 64 bit length).

  • Home search movement with Z phase counter function.


Specifications:

  • Power voltage: 3.3V±5%

  • I/O level: TTL level

  • Standard clock: Maximum 10MHz

  • Range of total pulse numbers setting: 1 to 16,777,215 pulses or endless

  • Range of deceleration start point setting: 0 to 16,777,215 pulses

  • Numbers of frequency setting step: 65,536 steps

  • Numbers of acceleration deceleration slope setting: 65,536 steps

  • Numbers of output pulse gear step: 256 steps

  • Numbers of proportional shape slope data: 64 words


Range of Output Frequency

  • 0.004 to 256Hz (CLK=131kHz, ratio=256)

  • 1 to 65,535Hz (CLK=3.2768MHz, ratio=25)

  • 75 to 5,000,000Hz (CLK=10MHz, ratio=1)
