Delta: HMI (DOP-B07S411 Series)
Delta: HMI (DOP-B07S411 Series)

Discontinued! The suggested replacement is DOP-107CV.

Price: (Members Only)


Order #: DOP-B07S411
.

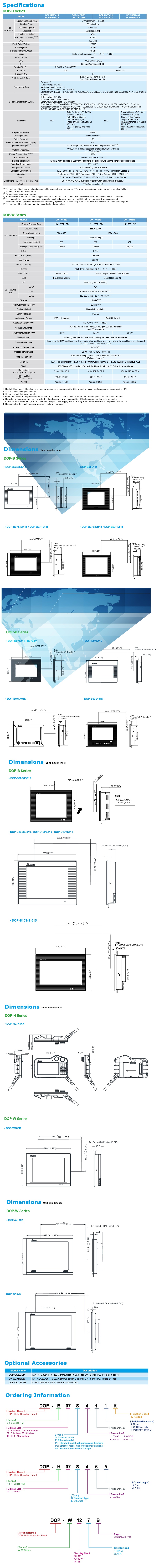

Description Specifications and Drawings


Delta: Touch Panel HMI - Human Machine Interfaces (DOP-B07S411 Series)

A human machine interface (HMI) is a platform which permits interaction between users and automation equipment. Delta’s HMI products provide various communication ports for fast communication and convenient control of a diverse range of machines, systems and facilities. The color touchscreen enables intuitive parameter entry and a variety of ways to display variable data, including trend graphs and alarm elements. The high resolution LCD display visualizes operating, monitoring and efficient control in real time. In addition, the user-friendly editing software guides users in quickly creating easy-to-navigate visual icons and easily designing intuitive monitoring screens for applications, while making adjustments, scheduling, and programming operational sequences that enhance flexibility and save development time. This achieves rapid system development that simplifies wiring and installation, saves operating expenses, and makes systems more efficient, eliminating time-consuming adjustment and additional maintenance costs.

DOP-B Series

The DOP Series Human Machine Interface (HMI) provides various touch screens with multiple dimensions and colors. It also offers fast and convenient control functions for industrial automation machines. In addition, Delta Windows-based and user-friendly DOPSoft Screen Editor and Programming Software configures the whole DOP Series. With DOPSoft, users can quickly edit images and graphs and easily set suitable communication protocol. More applications can be created, edited, downloaded and uploaded.

Specifications:

  • 7"(800 x 480 pixels) TFT LCD 65536 colors

  • 3 sets of COM ports, support RS232 / RS422 / RS485

  • For data transfer/download: RS232, USB

  • Supports USB Host, direct connection to USB disk, printer and mouse

  • Touch screen complies with IP65

  • Supports horizontal / vertical display

  • Editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7
