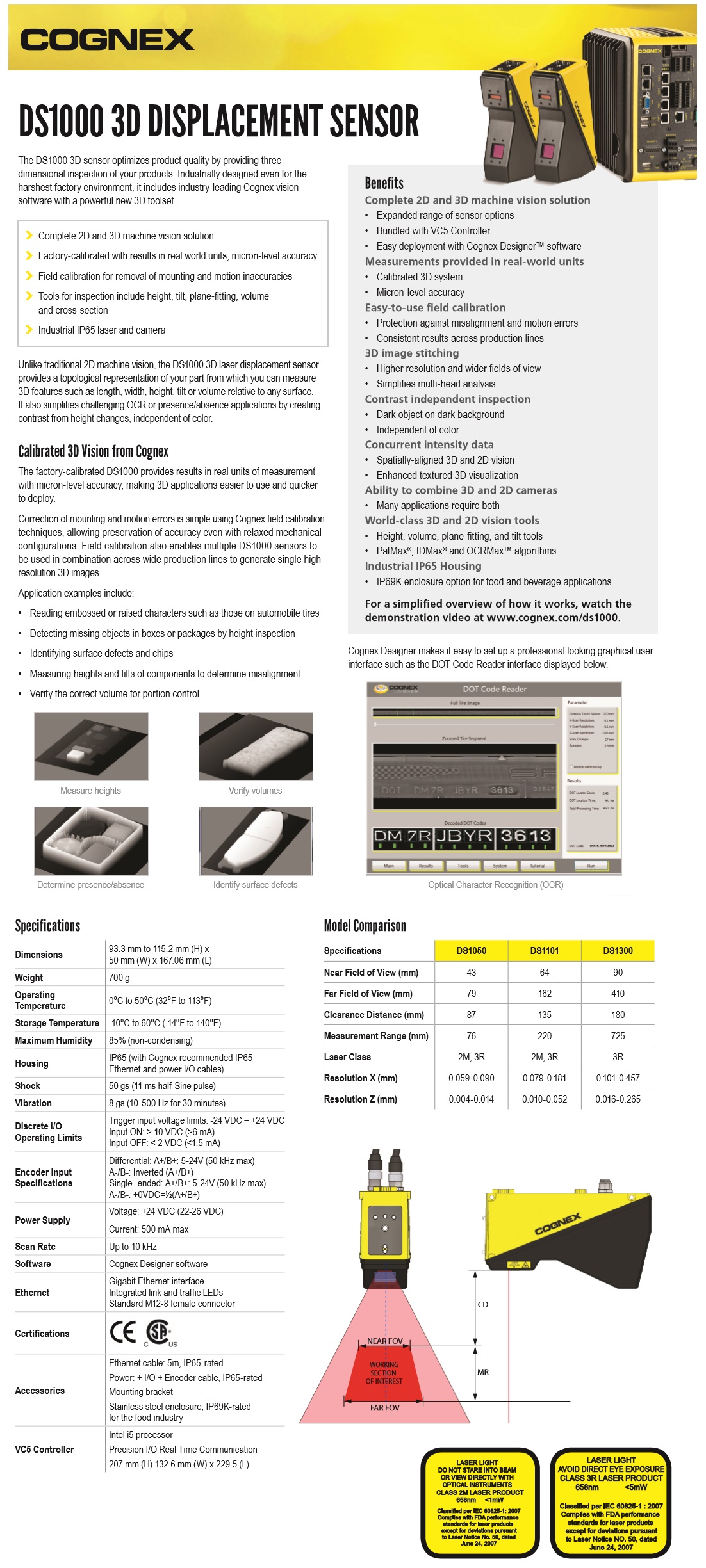

Cognex: Cognex 3D Displacement Sensors (DS1000 Series)
Calibrated 3D laser profilers for product inspection
Cognex 3D displacement sensors optimize product quality by providing three-dimensional inspection of your products. The sensors are factory calibrated and include industry-leading Cognex machine vision software with powerful 2D and 3D tool sets and a compact, IP65-rated design that withstands even the harshest factory environments. Combined with unique field calibration technology Cognex 3D vision provides the highest accuracy data despite mechanical mounting or motion errors, as well as enabling the simultaneous use of multiple sensors on wide production lines to generate single high resolution 3D images.
Benefits:
Complete 2D and 3D machine vision solution
Expanded range of sensor options
Bundled with VC5 Controller
Easy deployment with Cognex Designer™ software
Measurements provided in real-world units
Calibrated 3D system
Micron-level accuracy
Easy-to-use field calibration
Protection against misalignment and motion errors
Consistent results across production lines
3D image stitching
Higher resolution and wider fields of view
Simplified multi-head analysis
Contrast independent inspection
Dark object on dark background
Independent of color
Concurrent intensity data
Spatially-aligned 3D and 2D vision
Enhanced textured 3D visualization
Ability to combine 3D sensors and 2D cameras
Many applications require both
World-class 3D and 2D vision tools
Height, volume, plane fitting and tilt tools
PatMax®, IDMax® and OCRMax™ algorithms
Industrial IP65 housing
IP69K enclosure option for food and beverage applications
Fast scan rates
Up to 18KHz
Model No.: DS1050, DS1101, DS1300
