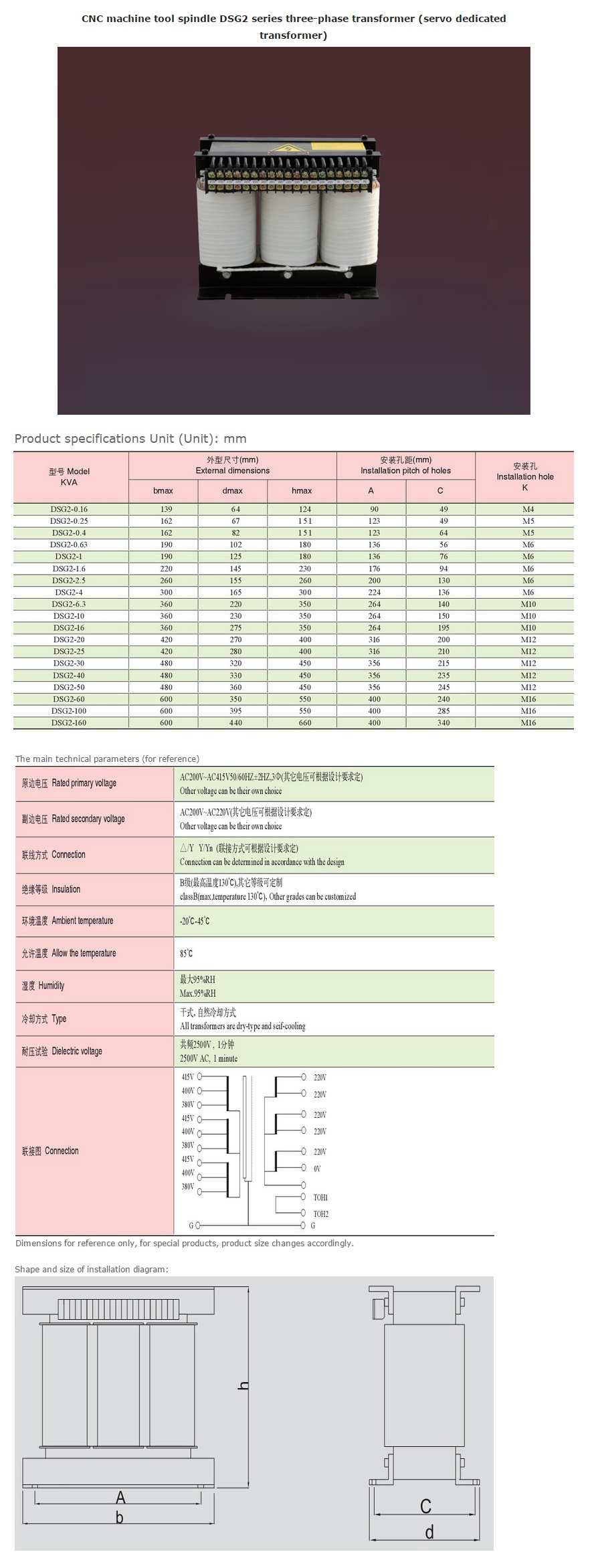

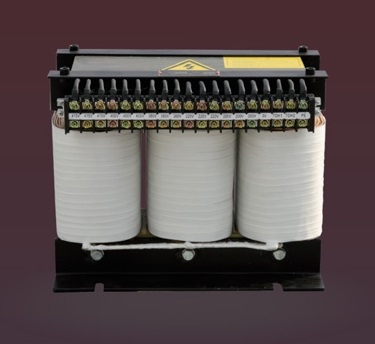

Three-Phase CNC Machine Tool-Spindle Transformer (servo dedicated) The DSG2 spindle series three-phase transformer is made of high quality materials and advanced technology specially produced for 100VA to 300kVA. The latest CNC system transformers appearance, installation dimensions, high efficiency, and small size have been standardized. Products meet VDE0550, IEC04-1, IEC439, JB5555, GB5226 standards and other national/international standards. DSG2 series are widely used in AC 50-60HZ input, output voltage not exceeding 500V, etc. Products of various input and output voltage level join groups, regulating the number of tap positions (typically ± 5%); winding capacity allocation use single-phase windings and rectifier circuits. Transformers can be carried out according to the requirements, careful design and manufacturing. Plastic resin can cast coil according to the user's requirements which prevents rain and oil from entering; this can extend the life of the transformer. DSG Series transformers are widely used in CNC tool spindle machines, CNC machine tools, machining centers, etc. Model No.: DSG2-0.16, DSG2-0.25, DSG2-0.4, DSG2-0.63, DSG2-1, DSG2-1.6, DSG2-2.5, DSG2-4, DSG2-6.3, DSG2-10, DSG2-16, DSG2-20, DSG2-25, DSG2-30, DSG2-40, DSG2-50, DSG2-60, DSG2-100, DSG2-160
|
|
|
 |
|
 |
|
