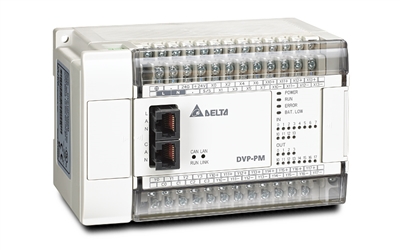

Delta: PLC (DVP-10PM Series)
Delta: PLC (DVP-10PM Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DVP-10PM
.

Description Specifications and Drawings


Delta: Programmable Logic Controllers (DVP-10PM Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

DVP-10PM Series

This series highlights high-speed command execution speed (basic command LD for 0.1375μs, application command MOV for 2.1μs and 1MHz differential output*4) to achieve precise motion control.

Specifications:

  • MPU points: 24

  • Max. I/O points: 256

  • Program capacity: 64k steps

  • Built-in hardware digital filter for counting

  • 6 high-speed counters (O.C. 200kHz*4, differential 200kHz*2), supporting U/D, U/D Dir, A/B, 4A/B counting modes

  • 4 differential 1MHz outputs, supporting U/D, U/D Dir, A/B output modes

  • Supports 1-speed (immediate stop after the mark arrives), 2-speed, zero return, MPG and single axis function

  • Highly accurate PWM 200kHz output, resolution 0.3%

  • Electronic gear function

  • 8 high-speed captures (mark correction, frequency measurement), comparative output, mark/mask function (for bag making)

  • 8 external interruptions for setting up rising- and falling-edge triggers, 1 timed interruption

  • Highly efficient command execution. LD: 0.1375μs, MOV: 2.1μs

Applications:

  • Used for 2-axis servo positioning control

  • Material cutting machine (high-speed servo control)

  • Crane operations

  • Material clipper controlled by the servo
