Delta: PLC (DVP-EC3 Series)
Delta: PLC (DVP-EC3 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DVP-EC3


Model No.:


.
Description Specifications and Drawings


Delta: Programmable Logic Controllers (DVP-EC3 Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

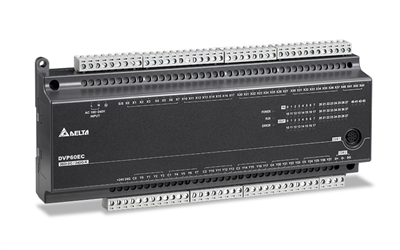

DVP-EC3 Series

EC3 series is the most economical solution for sequential control and communication monitoring and can operate independently, allowing the user to achieve stand-alone monitor, e.g. monitoring phototransistor coupler, proximity switch, optical sensor, indicator and illumination switch. Through serial ports, EC3 is able to connect to control devices such as PLC, frequency inverter and temperature controller, which can be said to be a programmable application solution that is cost-friendly and highly reliable.

Specifications:

  • MPU points: 10/ 14 / 16 / 24 / 32 / 60

  • Max. I/O points: 60

  • Program capacity: 4k steps

  • COM ports: Built-in RS-232 and RS-485 ports (available in 16-60 point models); compatible with Modbus ASCII/RTU protocol

  • Built-in 4 points of high-speed counters*

*Refers to the maximum counting range for a single counter

Applications:

  • Single control unit

  • Landscape fountain

  • Building automation


Model No.: DVP10EC00R3, DVP10EC00T3, DVP14EC00R3, DVP14EC00T3, DVP16EC00R3, DVP16EC00T3, DVP20EC00R3, DVP20EC00T3, DVP24EC00R3, DVP24EC00T3, DVP30EC00R3, DVP30EC00T3, DVP32EC00R3, DVP32EC00T3, DVP40EC00R3, DVP40EC00T3, DVP48EC00R3, DVP48EC00T3, DVP60EC00R3, DVP60EC00T3
