Delta: Programmable Logic Controllers (DVP-EH3 Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

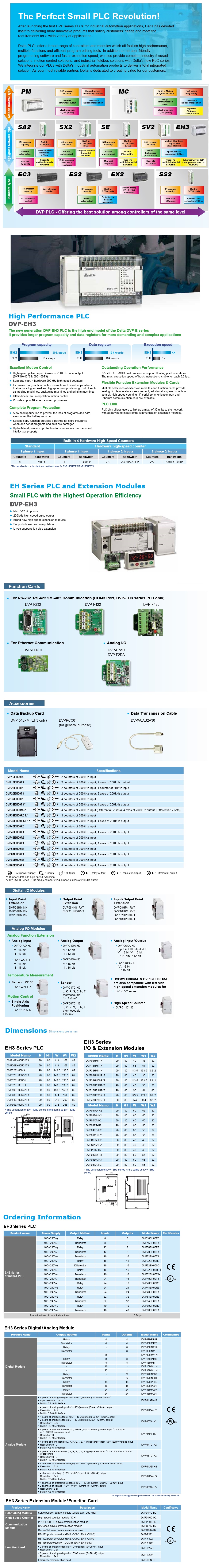

DVP-EH3 Series

The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series.

It provides larger program capacity and data registers for more demanding and complex applications.

Specifications:

Excellent Motion Control

  • High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)

  • Supports max. 4 hardware 200kHz high-speed counters

  • Increases many motion control instructions to meet the applications that require high-speed and high-precision

  • positioning control such as labeling machines, packaging machines and printing machines

  • Offers linear / arc interpolation motion control

  • Provides up to 16 external interrupt pointers

Complete Program Protection

  • Auto backup function to prevent losing programs and data even when the battery runs out

  • Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

  • Up to 4-level password protection protects your source programs and intellectual property

Outstanding Operation Performance

  • CPU + ASIC dual processors support floating point operations.

  • The max. execution speed of basic instructions is able to reach 0.24μs.

Flexible Function Extension Modules & Cards

  • The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.

PLC-Link

  • C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.

Brand-New High-Speed Extension Modules

  • The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.

Applications:

  • High-speed 3-axis servo welding machine

  • High-speed cutting machine

  • Bar feeder

  • Distributed monitor system in production line


Model No.: DVP16EH00R3, DVP16EH00T3, DVP20EH00R3, DVP20EH00T3, DVP32EH00M3, DVP32EH00R3, DVP32EH00R3-L, DVP32EH00T3, DVP32EH00T3-L, DVP40EH00R3, DVP40EH00T3, DVP48EH00R3, DVP48EH00T3, DVP64EH00R3, DVP64EH00T3, DVP80EH00R3, DVP80EH00T3
