Delta: Industrial Fieldbus Solution (DVP-FPMC Series)
Delta: Industrial Fieldbus Solution (DVP-FPMC Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DVP-FPMC
.

Description Specifications and Drawings


Delta: Industrial Fieldbus Solution (DVP-FPMC Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

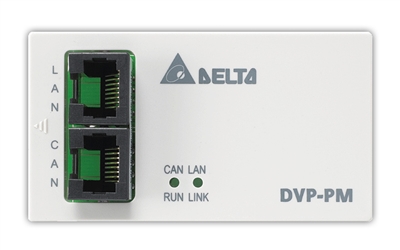

CANopen Communication Devices (DVP-FPMC Series)

  • Flexible configuration

  • Supports CANopen DS301 and DSP402 protocols

  • Conducts multi-axis, high-speed and intricate motion control by max. baud rate 1M bps

Features:

  • For DVP-PM series PLC only

  • Complies with CANopen DS301 V4.0.2 Sync, PDO, SDO and NMT

  • Supports 126 asynchronous axes in CANopen DSP402 V2.1 through SDO

  • Supports 4 synchronous axes in CANopen DS402 V2.1

  • Built-in commands to control Delta ASDA-A2 series servo system

  • PLCopen Like Function Block

Specifications:

Network Interface

  • Transmission method: IEEE 802.3, IEEE 802.3u

  • Baud rate: 10/100M bps

  • Transmission distance: 100m

CAN Interface

  • Message type: PDO, SDO, SYNC, Emergency, NMT

  • Connector: Removable, 5.08mm

  • Serial baudrate: 500k, 1M bps

  • Power consumption: 1.7 W

  • Insulation voltage: 500 V
