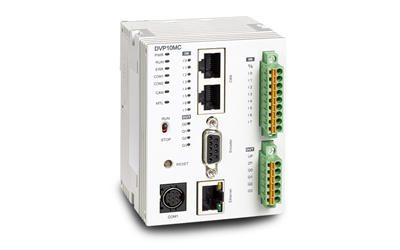

Delta: PLC (DVP-MC Series)
Delta: PLC (DVP-MC Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DVP-MC
.

Description Specifications and Drawings


Delta: Programmable Logic Controllers (DVP-MC Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

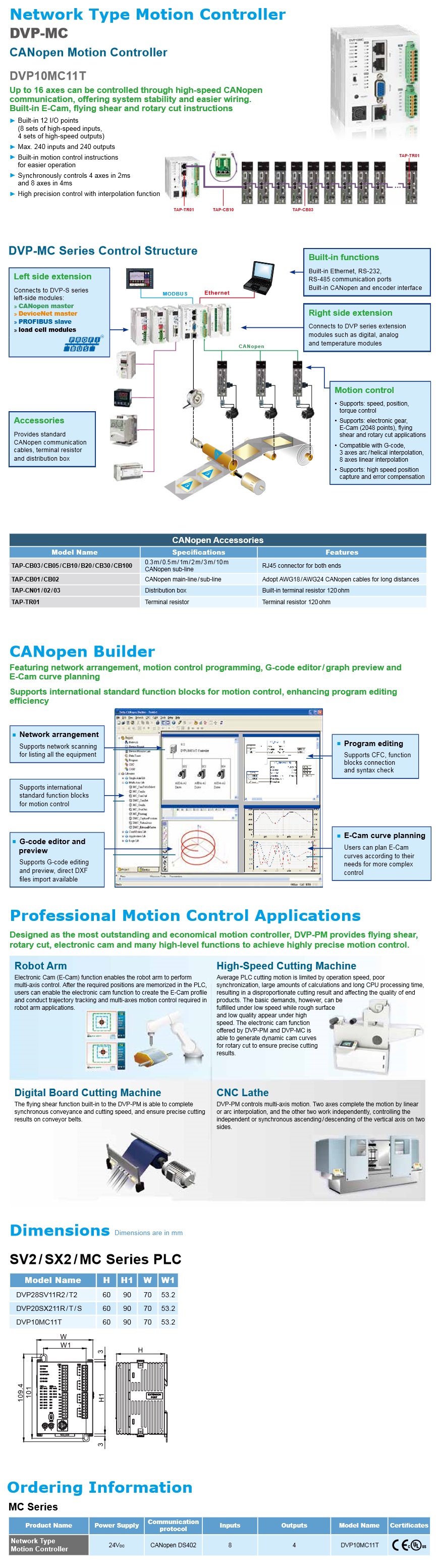

DVP-MC Series

Features:

  • Up to 16 axes can be controlled through high-speed CANopen communication

  • Provides E-Cam (2048 points), rotary cut and flying shear applications

  • Compatible with DVP-S series left and right side modules for flexible applications

Specifications:

  • Built-in 12 I/O points
    (8 sets of high-speed pulse inputs for interrupt function and 4 sets of high-speed outputs)

  • Max. 480 I/O points

  • Program capacity:Ladder 16k steps / Motion 1Mbyte

  • Built-in Ethernet, RS-232 and RS-485 communication port and standard MODBUS ASCII/RTU communication protocol

  • Flexible industrial network applications
    (provides DeviceNet Master/Slave, CANopen Master/Slave, PROFIBUS-DP Slave and many more modules)

  • Provides standard CANopen communication cables, terminal resistors, distribution boxes and related accessories. Wiring is simple and easy.

  • Synchronously controls 4 axes in 2ms and 8 axes in 4ms

  • Compatible with G-Code

  • Supports PLCopen standard function blocks for motion control, enhancing program editing efficiency

Applications:

  • Packaging machinery

  • Rotary cut machines

  • Panel saws

  • Coil winding machines

  • Bag making machines.
