Delta: Programmable Logic Controllers (DVP-PM Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

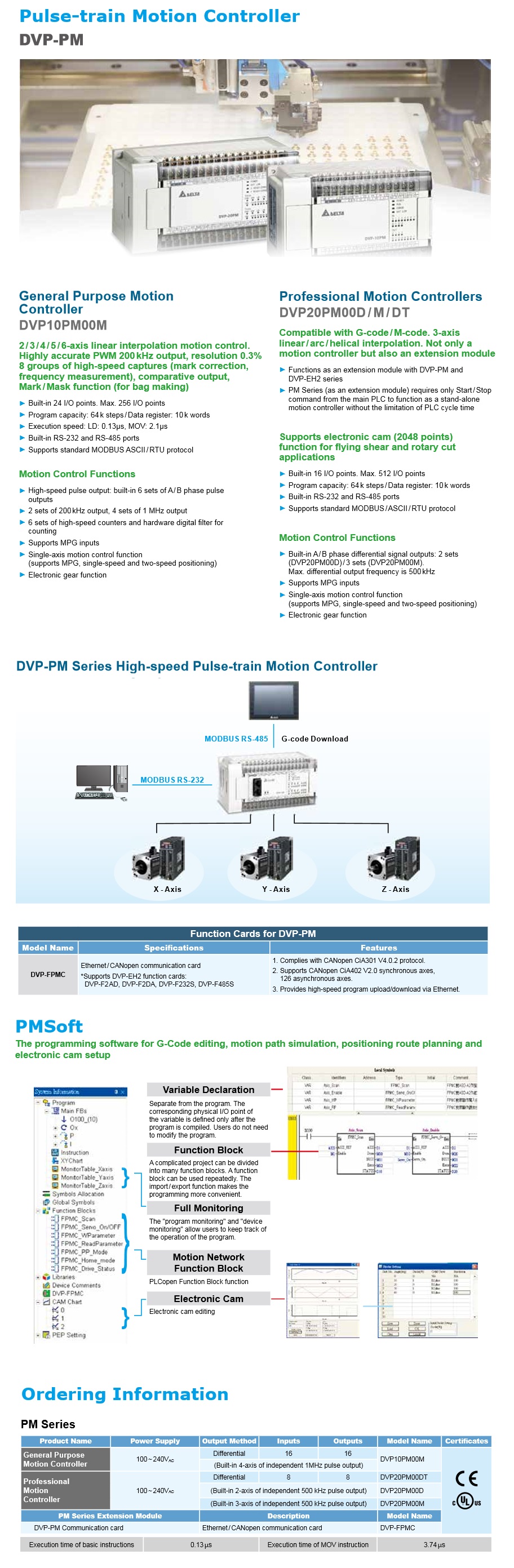

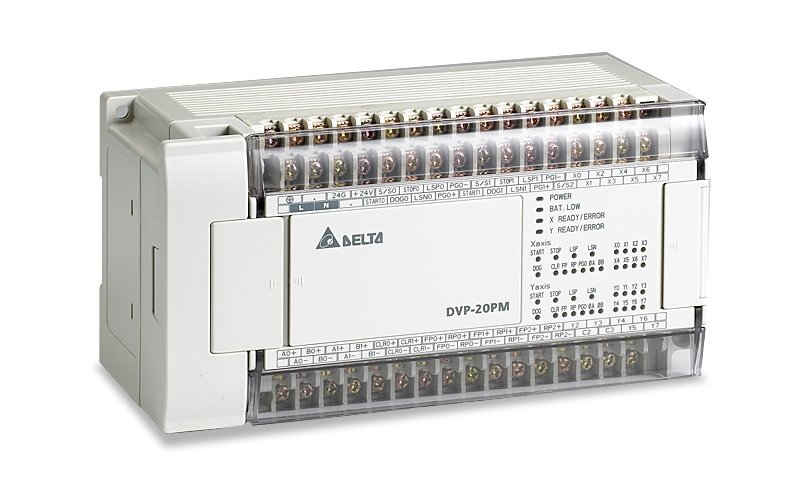

DVP-PM Series

The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.

Specifications:

  • MPU points: 16

  • Max. I/O points: 512

  • Program capacity: 64K Steps

  • Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

  • Data register: 10,000 words (latched)

  • 500KHz high-speed pulse output:

  • Built-in 2 groups of A/B phase differential signal output

  • X-axis pulse output: (FP0+, FP0-), (RP0+, RP0-)

  • Y-axis pulse output: (FP1+, FP1-), (RP1+, RP1-)

  • Supports Manual Pulse Generator (MPG) and multi-point external signal inputs

Applications:

  • Used for 2-axis servo positioning control

  • Material cutting machine (high-speed servo control)

  • Crane operations

  • Material clipper controlled by the servo


Model No.: DVP-FPMC, DVP10PM00M, DVP20PM00D, DVP20PM00DT, DVP20PM00M
