Delta: Programmable Logic Controllers (DVP-SA Series)
Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control. Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.
DVP Series Programmable Logic Controllers
Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

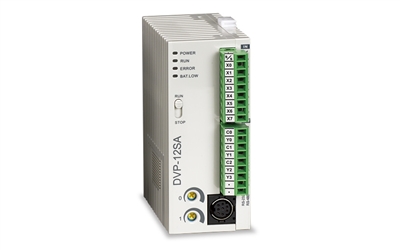

DVP-SA Series
Compared to the standard Delta PLC, the slim and compact SA series offers larger program capacity and operation efficiency.
Specifications:
MPU points: 12
Max. I/O points: 236
Program capacity: 8K Steps
Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).
Built-in high-speed counter
Applications:
Printing machine
Dying machine
Container filler (for prescription's)
Workstation monitoring in production line (PLC EASY LINK).
