Delta: PLC (DVP-SX Series)
Delta: PLC (DVP-SX Series)


Price: (Members Only)


Order #: DVP-SX
Qty:

Description


Delta: Programmable Logic Controllers (DVP-SX Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete "Delta Solution" for all users.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

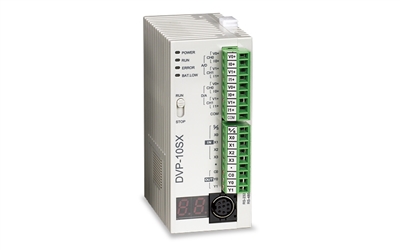

DVP-SX Series

The slim and compact SX series supports digital input/output and is built in with multiple analog I/O channels.

Specifications:

  • MPU points: 10 (4DI/2DO, 2AI/2AO)

  • Max. I/O points: 230

  • Program capacity: 8K Steps

  • Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

  • High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).

  • Built-in high-speed counter

  • Built-in analog I/O function

Applications:

  • Used for PID temperature/humidity control

  • 2-axis AC motor drive constant speed control

  • Temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)
