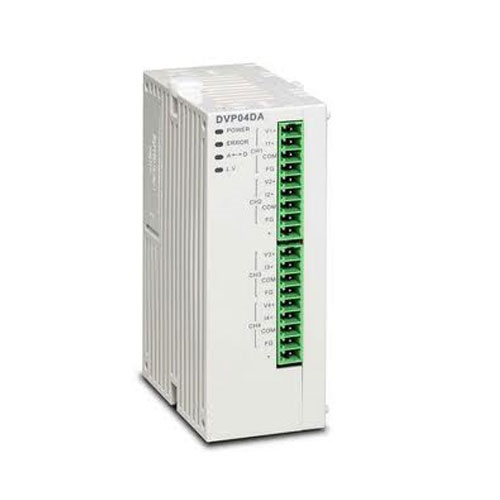

Delta: Analog I/O Modules (DVP04DA-E2)

Analog Output Module | DVP-ES2 Series

The D/A Conversion - In industrial automation, many control signals are analog signals. The most frequently adopted range for the signals are voltage -10V ~ 10V and current 0 ~ 20mA. Therefore, the data in the PLC have to be converted into analog signals for controlling the peripheral devices. For example, data -32,000 ~ 32,000 in the PLC are converted into voltage -10V ~ 10V by a D/A module. The output voltage can therefore be used for controlling the peripheral analog devices.

DVP02DA-E2 (DVP04DA-E2) analog signal output module receives 2 (4) groups of 16-bit digital data from the PLC MPU and converts the digital data into 2 (4) points analog output signals (voltage or current). You can select voltage output or current output by the wiring. Range for voltage output: -10V ~ 10V (-32,000 ~ 32,000). Range for current output: 0 ~ 20mA (0 ~ 32,000).
