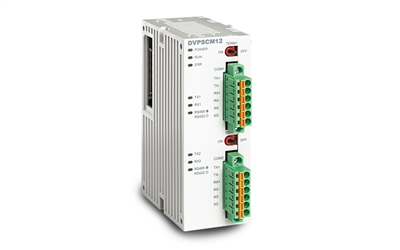

Delta: Industrial Fieldbus Solution (DVPSCM12-SL Series)
Delta: Industrial Fieldbus Solution (DVPSCM12-SL Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: DVPSCM12-SL
.

Description Specifications and Drawings


Delta: Industrial Fieldbus Solution (DVPSCM12-SL Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

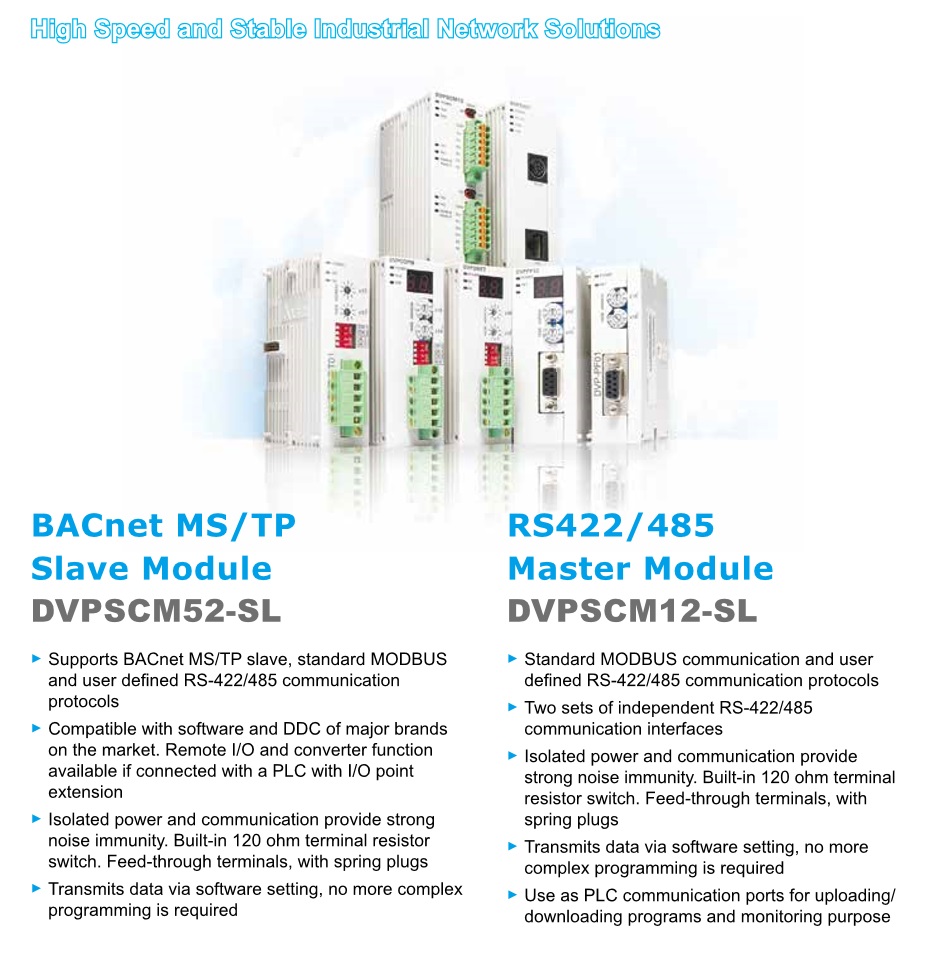

Modbus Serial Communication Devices (DVPSCM12-SL Series)

  • Supports Modbus serial communication

  • Offers additional RS-232, RS-422 and RS-485 ports and conversions among channels for various on-site demands

Features:

  • PLC extension module to amplify signals for the left-side communication and support uploading and downloading of PLC program and parameters

  • Provides two stand-alone RS-485/RS-422 ports

  • Supports standard MODBUS protocol

  • Supports user-defined communication protocol

  • Fully isolates communication interfaces and highly capable in resisting interferences

Specifications:

  • Transmission method: RS-485/RS-422

  • Connector type: Euro-type terminal blocks with feed-through terminals and spring plugs

  • Terminal resistors: built-in and changed-over by switches

  • Serial baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 bps

  • Data type: Modbus ASCII/RTU、UD Link (user-defined communication protocol)
