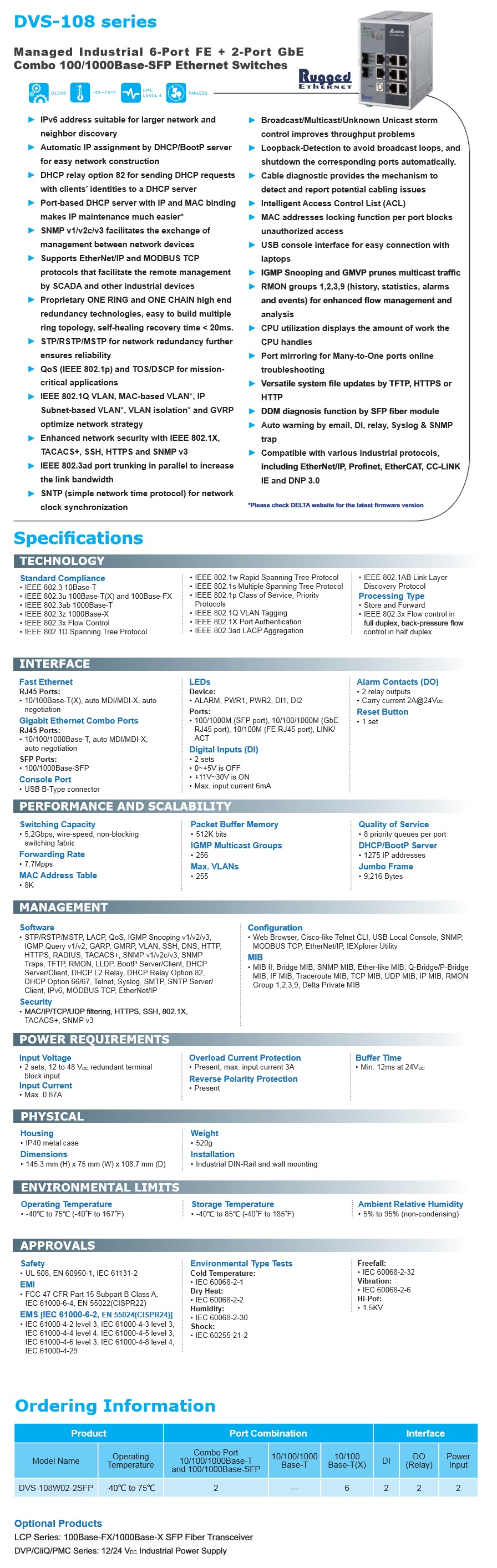

Delta: Industrial Ethernet Solution (DVS-108W02-2SFP Series) Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards. Ethernet (Managed) Switches: DVS-108W02-2SFP Series High-end Layer 2 management, redundant self-healing ring and a wide-operating temperature from -40℃ to 75℃ are providing highly reliable network. The EMC noise immunity complies with IEC standards and attains a high level 3/4. The intuitive design of WEB GUI interface provides users with easy access and convenience. IPv6 address suitable for larger network and neighbor discovery Automatic IP assignment by DHCP/BootP server for easy network construction DHCP relay option 82 for sending DHCP requests with clients’ identities to a DHCP server Port-based DHCP server with IP and MAC binding makes IP maintenance much easier* SNMP v1/v2c/v3 facilitates the exchange of management between network devices Supports EtherNet/IP and MODBUS TCP protocols that facilitates the remote management by SCADA and other industrial devices Proprietary ONE RING and ONE CHAIN high end redundancy technologies, easy to build multiple ring topology, self-healing recovery time < 20ms. STP/RSTP/MSTP for network redundancy further ensures reliability QoS (IEEE 802.1p) and TOS/DSCP for mission-critical applications IEEE 802.1Q VLAN, MAC-based VLAN*, IP Subnet-based VLAN*, VLAN isolation* and GVRP optimize network strategy Enhanced network security with IEEE 802.1X, TACACS+, SSH, HTTPS and SNMP v3 IEEE 802.3ad port trunking in parallel to increase the link bandwidth SNTP (simple network time protocol) for network clock synchronization Broadcast/Multicast / Unknown Unicast storm control improves throughput problems Loopback-Detection to avoid broadcast loops, and shut down the corresponding ports automatically. Cable diagnostic provides the mechanism to detect and report potential cabling issues Intelligent Access Control List(ACL) MAC addresses locking function per port blocks unauthorized access USB console interface for easy connection with laptops IGMP Snooping and GMVP prunes multicast traffic RMON groups 1,2,3,9(history, statistics, alarms and events) for enhanced flow management and analysis CPU utilization displays the amount of works the CPU handles Port mirroring for Many-to-One ports online troubleshooting Versatile system file updates by TFTP, HTTPS or HTTP DDM diagnosis function by SFP fiber module Auto warning by email, DI, relay, Syslog & SNMP trap Compatible with various industrial protocols, including EtherNet/IP, Profinet, EtherCAT, CC-LINK IE and DNP 3.0
Technology (Standard Compliance) IEEE 802.3 10Base-T IEEE 802.3u 100Base-T(X) and 100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x Flow Control IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service, Priority Protocols IEEE 802.1Q VLAN Tagging IEEE 802.1X Port Authentication IEEE 802.3ad LACP Aggregation IEEE 802.1AB Link Layer Discovery Protocol
Processing Type (Store and Forward) Gigabit Ethernet Combo Ports RJ45 Ports: 2 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation SFP Ports: 2 100/1000Base-SFP
Console Port: USB B-Type connector Device: ALARM, PWR1, PWR2, DI1, DI2 Ports: 100/1000M(SFP port), 10/100/1000M(GbE RJ45 port), 10/100M(FE RJ45 port), LINK/ACT
2 sets 0~+5V is OFF +11V~30V is ON Max. input current 6mA
2 relay outputs Carry current 5 A@24VDC
Performance and Scalability Switching Capacity: 5.2Gbps, Wired speed, Non-blocking switching fabric Forwarding Rate: 7.7Mpps MAC Address Table: 8K Packet Buffer Memory: 512K bits IGMP Multicast Groups: 256 Max. VLANs: 255 Quality of Service: 8 priority queues per port DHCP/BootP Server: 1275 IP addresses Jumbo Frame: 9,216 Bytes
Software: STP/RSTP/MSTP, LACP, QoS, IGMP Snooping v1/v2/v3, IGMP Query v1/v2, GARP, GMRP, VLAN, SSH, DNS, HTTP, HTTPS, RADIUS, TACACS+, SNMP v1/v2c/v3, SNMP Traps, TFTP, RMON, LLDP, BootP Server/Client, DHCP Server/Client, DHCP L2 Relay, DHCP Relay Option 82, DHCP Option 66/67, Telnet, Syslog, SMTP, SNTP Server/Client, IPv6, MODBUS TCP, EtherNet/IP Security: MAC/IP/TCP/UDP filtering, HTTPS, SSH, 802.1x, TACACS+, SNMP v3 Configuration: Web Browser, Cisco-like Telnet CLI, USB Local Console , SNMP, MODBUS TCP, EtherNet/IP, IEXplorer Utility MIB: MIB II, Bridge MIB, SNMP MIB, Ether-like MIB, Q-Bridge/P-Bridge MIB, IF MIB, Traceroute MIB, TCP MIB, UDP MIB, IP MIB, RMON Group 1,2,3,9, Delta Private MIB Input Voltage: 2 sets, 12 to 48VDC redundant inputs by terminal block Input Current: 0.87A Max. Overload Current Protection: Present, Max. Input current 3A Reverse Polarity Protection : Present Buffer Time : Min. 12ms at 24VDC
Housing : IP40 aluminum metal case Dimensions : 145.3 mm(H) x 75 mm(W) x 108.7 mm (D) Weight : 520g Installation : Industrial DIN-Rail and wall mounting
Operating Temperature : -40℃ to 75℃(-40℉ to 167℉) Storage Temperature: -40℃ to 85℃(-40℉ to 185℉) Ambient Relative Humidity: 5% to 95%(non-condensing)
Safety: UL 508, EN 60950-1, IEC 61131-2 EMI: FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022 EMS(IEC 61000-6-2): IEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-4 level 4, IEC 61000-4-5 level 3, IEC 61000-4-6 level 3, IEC 61000-4-8 level 4, IEC 61000-4-29 Environmental Type Tests:
|
|
|
 |
|
 |
|
