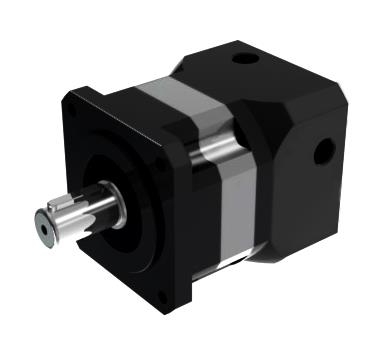

Cyclone Gearbox: EB Series (P2:Standard) Stage 1
Cyclone Gearbox: EB Series (P2:Standard) Stage 1


Price: (Members Only)


Order #: EB_-_P2_


Specification Model (Size):

Reduction Ratio (Single):

Backlash:

Output Type:

Qty:

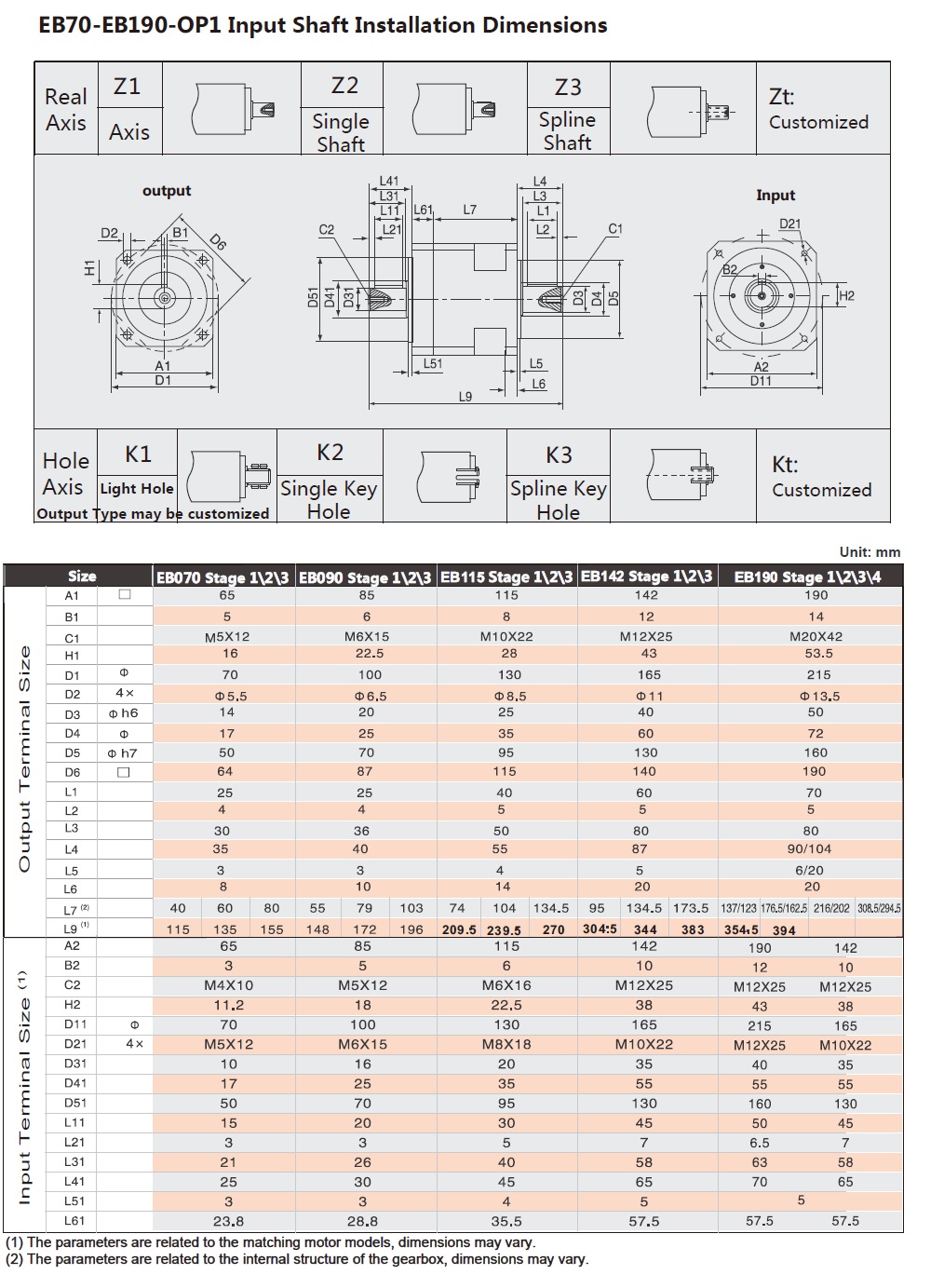

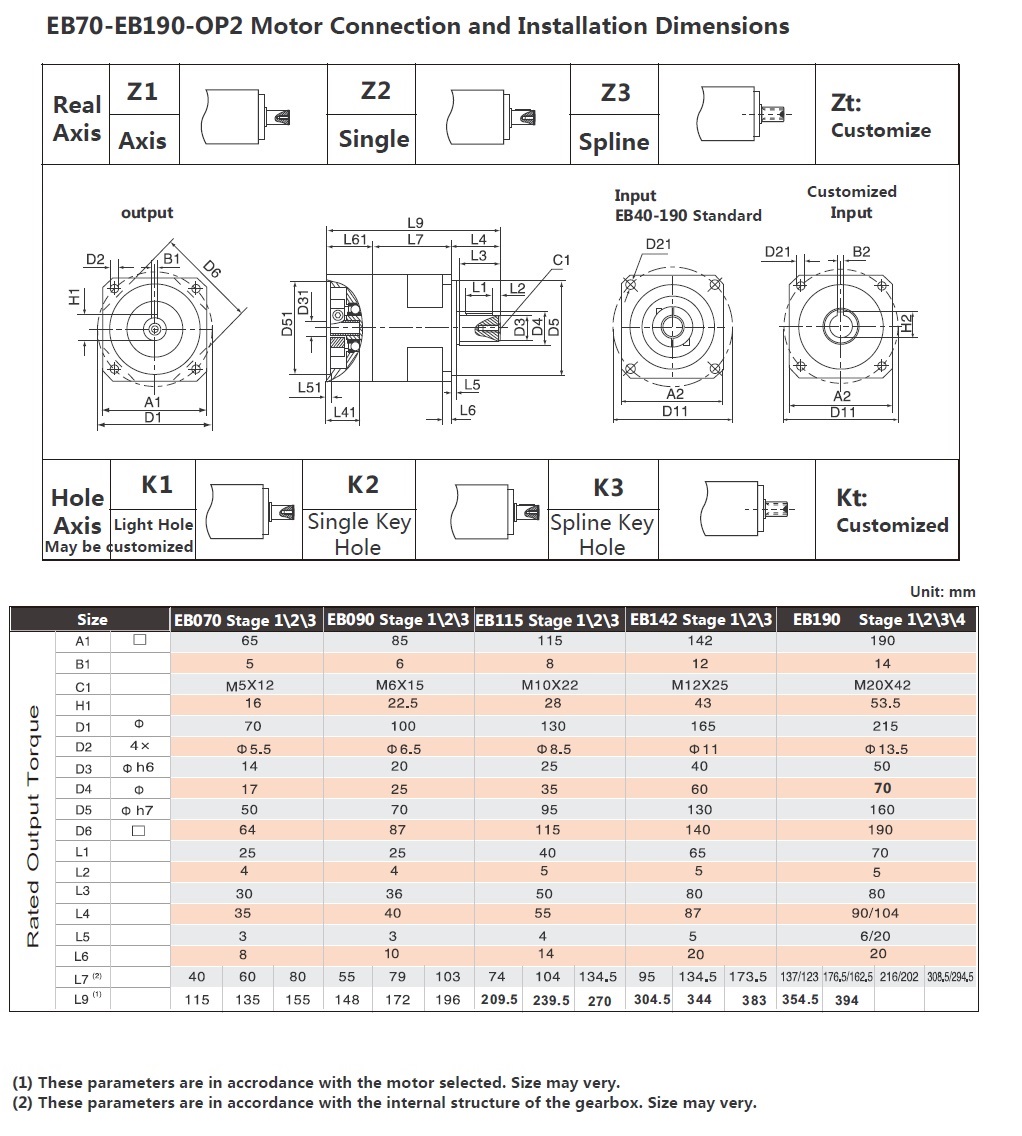

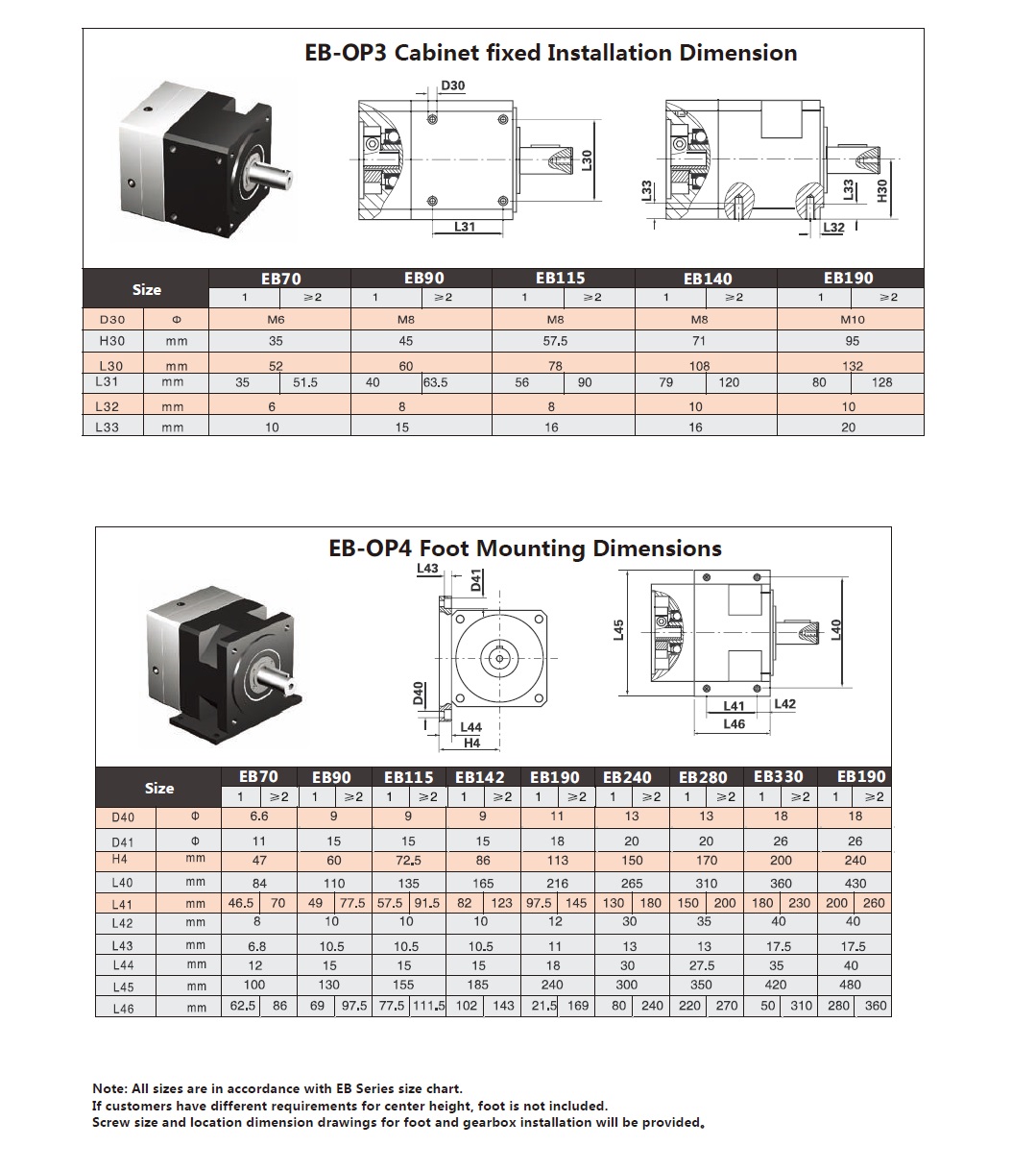

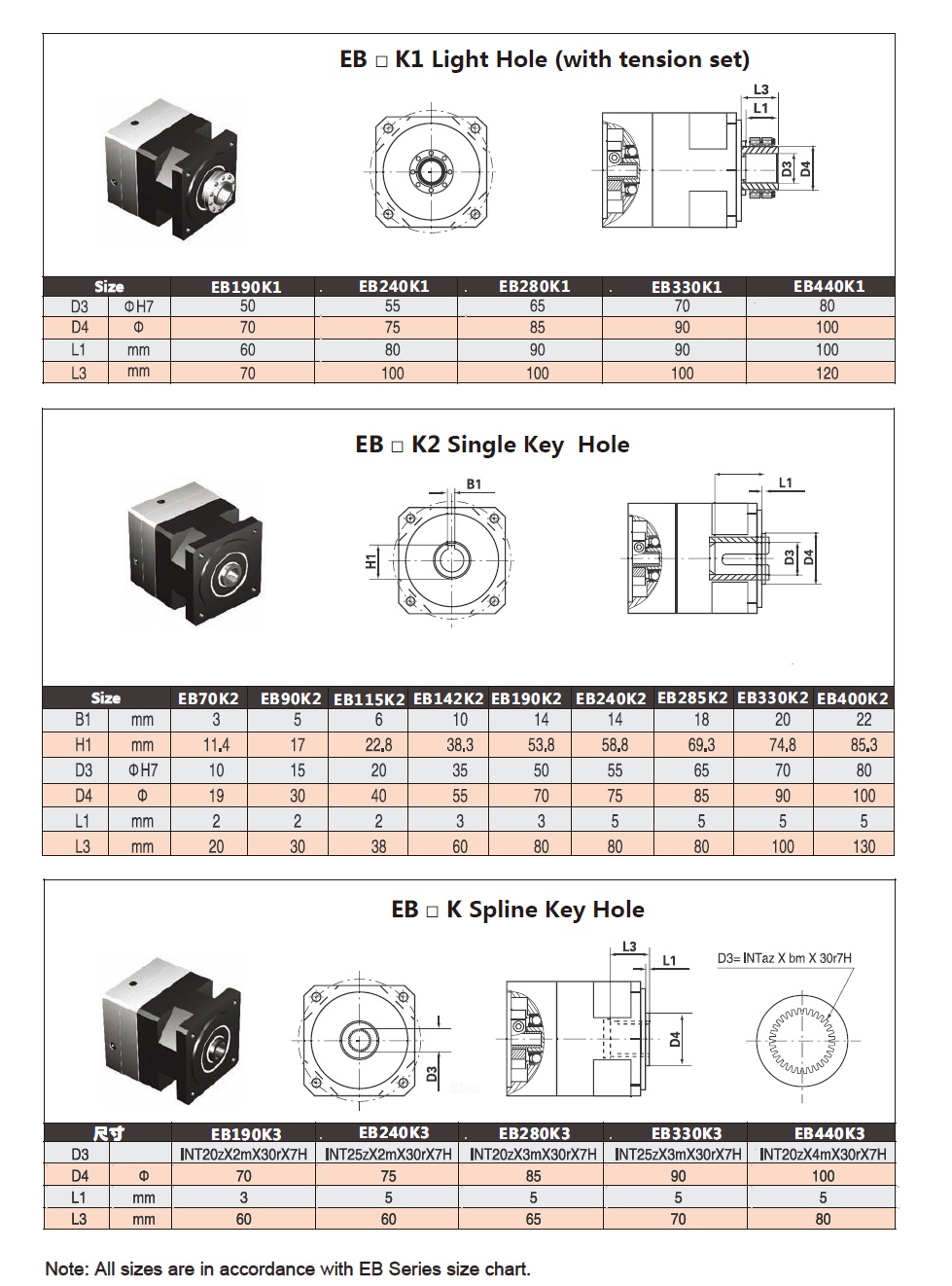

Description Specifications and Drawings


Specifications:

· Moment of Inertia: 3:1 ~ 10:1

· Output Torque: UP to 16000 Nm

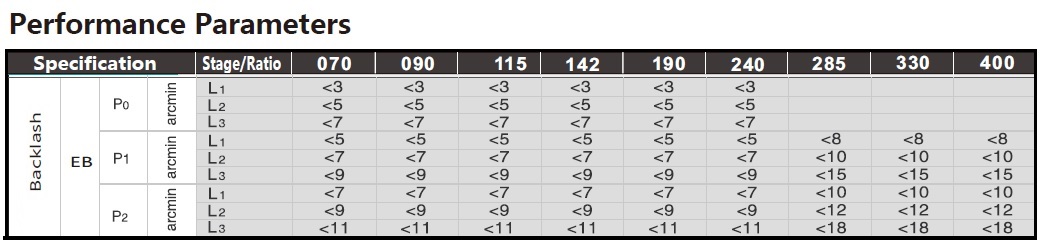

· Backlash: ≤10 arcmin

· Available Sizes: 42-400


How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method






Cyclone EB Series PDF
