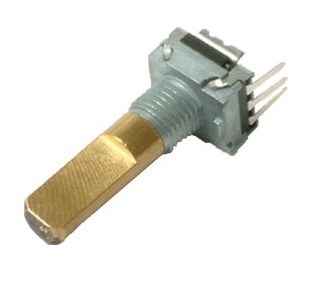

CUI: Mechanical Panel Incremental Encoders (EC09P20V Series)
CUI: Mechanical Panel Incremental Encoders (EC09P20V Series)

Alternate View


Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EC09P20V


Model No.:


.

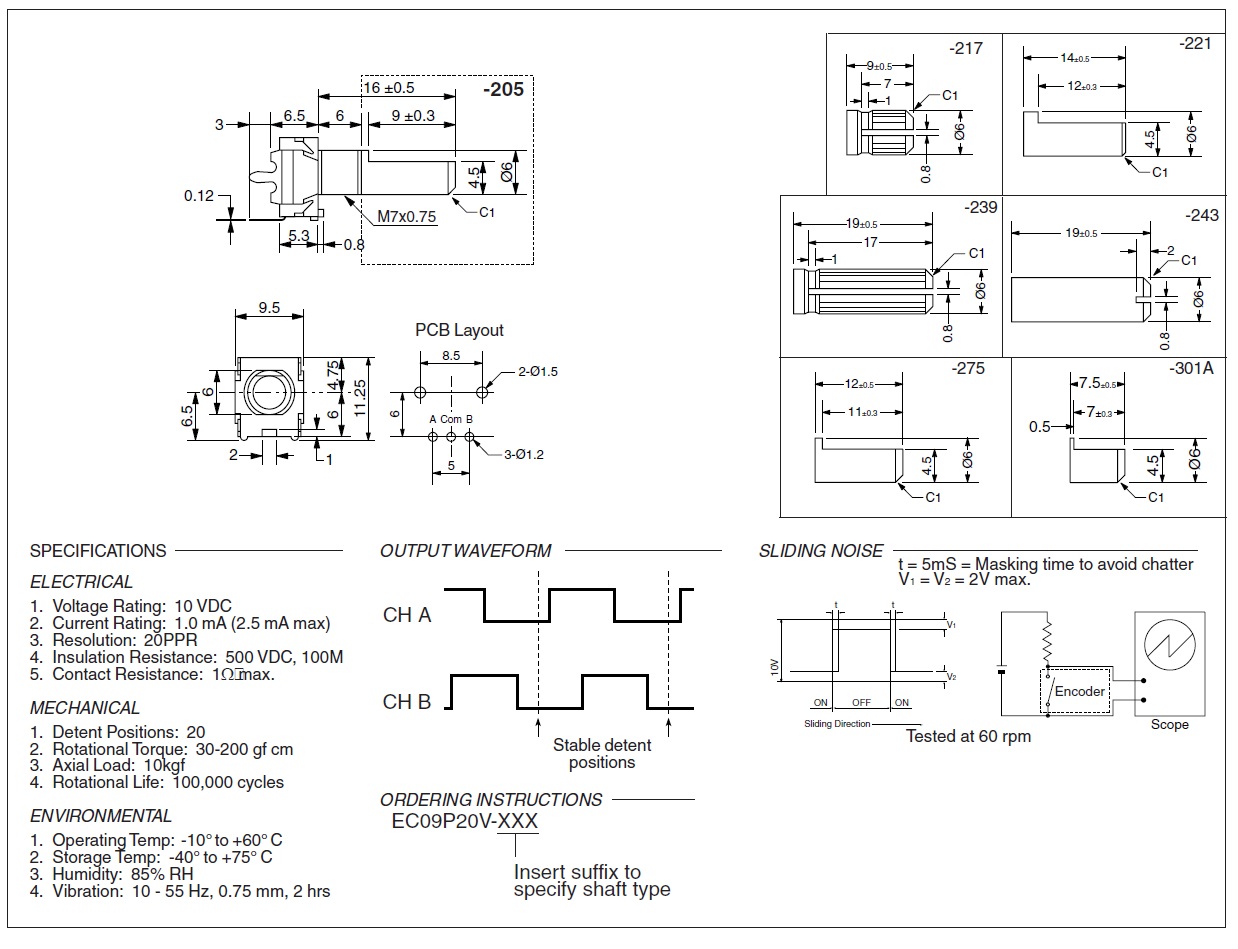

Description Specifications and Drawings


CUI: EC09P20V Series
9 mm, 20 PPR, Vertical, Mechanical Panel Mount Encoder

Specifications:

  • Input Voltage (Vdc): 0 ~ 10

  • Shaft Length (mm): 12, 14, 19, 7.5, 9

  • Operating Temp. (°C): -10 ~ 55


Model No.: EC09P20V-205, EC09P20V-217, EC09P20V-221, EC09P20V-239, EC09P20V-243, EC09P20V-275, EC09P20V-301A
