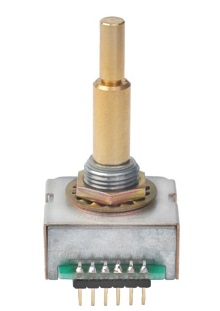

CUI: Optical Panel Incremental Encoders (EC206 E or F Series)
CUI: Optical Panel Incremental Encoders (EC206 E or F Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EC206EF


Model No.:


.

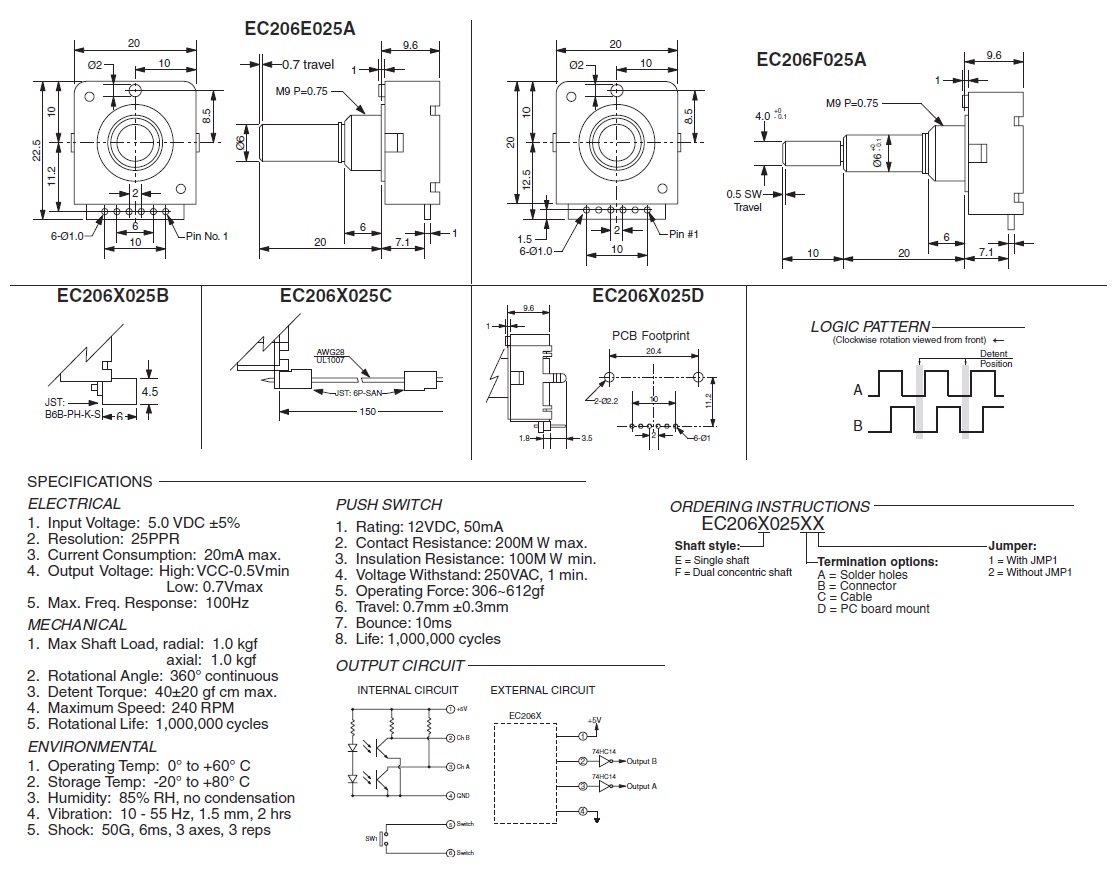

Description Specifications and Drawings


CUI: EC206 E or F Series
20 mm, 25 PPR, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder

Specifications:

  • Input Voltage (Vdc): 4.75 ~ 5.25

  • Shaft Length (mm): 20, 30

  • Operating Temp. (°C): 0 ~ 60

  • Speed, Max. (RPM): 240

Model No.: EC206EA1, EC206EA2, EC206EB1, EC206EB2, EC206EC1, EC206EC2, EC206ED1, EC206ED2, EC206FA1, EC206FA2, EC206FB1, EC206FB2, EC206FC1, EC206FC2, EC206FD1, EC206FD2
